Offline Joe Meiring
#1 Posted : 26 June 2020 14:39:36(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Ive had my 39302 diesel ML 2200 since 2011. Such a lovely looking loco!
It runs fine, altho ive found that the track and pukos really needs to be scrupulously clean! The only hassle I'm having is when she runs very slowly over my 3 way turnouts (I have 2 of these) there's a loss of contact...I've looked carefully under the loco and it looks as if the front of the slider is touching the side of the rail??....I've been told to fit a shorter slider?!?!..is this possible?Confused .... if I run at a fair speed it just momentarily hesitates but does carry on thru the turnout.....
Stay safe out there folks Sad
Joe M from a cold wet wintry Cape Town
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline David Dewar
#2 Posted : 26 June 2020 16:11:19(UTC)
David Dewar

Scotland
Joined: 01/02/2004(UTC)
Posts: 6,924
Location: Scotland
Hi Joe. Make sure the slider is fitted properly to the loco and that there is not too much sideways movement. If it is only when going in one direction over the three way turnout then check that the movement does not have any small bit of grit stuck there.
I expect you have probably done the above but if not worth trying before changing the slider.

Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
thanks 1 user liked this useful post by David Dewar
Offline IanC
#3 Posted : 26 June 2020 17:26:14(UTC)
IanC

United Kingdom
Joined: 05/03/2016(UTC)
Posts: 158
Location: England, Bedford
Are you sure it's the slider? I had a coupling at the front of a loco that clouted the raised centre studs / pukos in the middle of a turnout / points every time travelling in one direction when leading. It looked like an electrical hesitation but it was mechanical.

IanC
thanks 2 users liked this useful post by IanC
Offline H0
#4 Posted : 26 June 2020 17:28:51(UTC)
H0


Joined: 16/02/2004(UTC)
Posts: 13,749
Location: DE-NW
Originally Posted by: Joe Meiring Go to Quoted Post
I've looked carefully under the loco and it looks as if the front of the slider is touching the side of the rail??
C track?
If the slider touches a powered rail there will be a short circuit and the controller will eventually go on STOP.
With C track the rail near the frog are not powered an no short circuit will occur. So the slider touching the rails should not normally be a problem - unless the slider is bent out of shape and loses contact to the centre-rail studs in the event.

Regards
Tom
---
"In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
UserPostedImage
thanks 1 user liked this useful post by H0
Offline Joe Meiring
#5 Posted : 26 June 2020 18:58:02(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: David Dewar Go to Quoted Post
Hi Joe. Make sure the slider is fitted properly to the loco and that there is not too much sideways movement. If it is only when going in one direction over the three way turnout then check that the movement does not have any small bit of grit stuck there.
I expect you have probably done the above but if not worth trying before changing the slider.


Thanks David....slider firmly in place. It has 4 locating lugs so no sideways movement. No grit or dirt that i can see....

Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline Joe Meiring
#6 Posted : 26 June 2020 19:02:30(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: IanC Go to Quoted Post
Are you sure it's the slider? I had a coupling at the front of a loco that clouted the raised centre studs / pukos in the middle of a turnout / points every time travelling in one direction when leading. It looked like an electrical hesitation but it was mechanical.

IanC

Thanx Ian...I have removed the couplings...still the same....if the speed is very slow the motor cuts out, lights go off, a slight push and it starts up again....Confused
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline Joe Meiring
#7 Posted : 26 June 2020 19:14:47(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: H0 Go to Quoted Post
Originally Posted by: Joe Meiring Go to Quoted Post
I've looked carefully under the loco and it looks as if the front of the slider is touching the side of the rail??
C track?
If the slider touches a powered rail there will be a short circuit and the controller will eventually go on STOP.
With C track the rail near the frog are not powered an no short circuit will occur. So the slider touching the rails should not normally be a problem - unless the slider is bent out of shape and loses contact to the centre-rail studs in the event.


Thanx Tom....... the slider is not bent out of shape. It happens on both my 3 way points as it enters...but all of the other turnouts, curved or straight, are fine...Confused
A slight push forward and the lights and motor go back on again.
At higher speed settings there is enough momentum to carry the locothru the 3 way with only a slght flickering of the headlights....
Stay safe!
Joe

Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Online kiwiAlan
#8 Posted : 26 June 2020 20:13:31(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 5,144
Location: ENGLAND, Didcot
Originally Posted by: Joe Meiring Go to Quoted Post
Originally Posted by: IanC Go to Quoted Post
Are you sure it's the slider? I had a coupling at the front of a loco that clouted the raised centre studs / pukos in the middle of a turnout / points every time travelling in one direction when leading. It looked like an electrical hesitation but it was mechanical.

IanC

Thanx Ian...I have removed the couplings...still the same....if the speed is very slow the motor cuts out, lights go off, a slight push and it starts up again....Confused


This suggests you don't get a short, but rather that the slider gets to a point where it is not touching any studs.

make sure the slider is dead flat along its length.

thanks 1 user liked this useful post by kiwiAlan
Offline Joe Meiring
#9 Posted : 26 June 2020 21:15:01(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: kiwiAlan Go to Quoted Post
Originally Posted by: Joe Meiring Go to Quoted Post
Originally Posted by: IanC Go to Quoted Post
Are you sure it's the slider? I had a coupling at the front of a loco that clouted the raised centre studs / pukos in the middle of a turnout / points every time travelling in one direction when leading. It looked like an electrical hesitation but it was mechanical.

IanC

Thanx Ian...I have removed the couplings...still the same....if the speed is very slow the motor cuts out, lights go off, a slight push and it starts up again....Confused


This suggests you don't get a short, but rather that the slider gets to a point where it is not touching any studs.

make sure the slider is dead flat along its length.


Thanks! Will check tomorrow morn wifh a straight edge!...
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline analogmike
#10 Posted : 27 June 2020 19:56:47(UTC)
analogmike

United States
Joined: 02/08/2014(UTC)
Posts: 635
Location: NEW JERSEY, USA
Hi Joe,
It may be a lack of ground. With the power up, get the lok to stall. Take a jumper wire from any ground source; rail, trafo, etc. then touch the other end to a driver wheel on the lok. If the lok lights up, it's a dead ground spot on the 3-way switch.
Just a hunch. Let us know.
Mikey
I love the smell of smoke fluid in the morning .
thanks 1 user liked this useful post by analogmike
Offline Joe Meiring
#11 Posted : 27 June 2020 21:00:47(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: analogmike Go to Quoted Post
Hi Joe,
It may be a lack of ground. With the power up, get the lok to stall. Take a jumper wire from any ground source; rail, trafo, etc. then touch the other end to a driver wheel on the lok. If the lok lights up, it's a dead ground spot on the 3-way switch.
Just a hunch. Let us know.
Mikey

Thanks! Will def do that tomorrow...ThumpUp
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline dickinsonj
#12 Posted : 28 June 2020 01:16:49(UTC)
dickinsonj

United States
Joined: 05/12/2008(UTC)
Posts: 1,325
Location: United States
Originally Posted by: kiwiAlan Go to Quoted Post


make sure the slider is dead flat along its length.



That is excellent advice. ThumpUp I have found many new Märklin sliders to be bent up in the middle, which invariably causes turnout problems. I have also found that just a very slight adjustment to make them perfectly flat makes most of the problems go away!

I check my problem sliders for being flat, evenly suspended front to back and side to side and also for the proper mm drop below the wheels, and then most of the time the electrical gremlins go away. ThumpUp
Regards,
Jim

I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains!
I have models from Era I to Era VI, but I try to focus on Eras I & III. Whoops, that one got away from me. Let's just say I focus on cool trains, regardless of the particulars :-)
So many trains and so little time.
thanks 1 user liked this useful post by dickinsonj
Offline Joe Meiring
#13 Posted : 28 June 2020 15:10:12(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Thanx everyone for all the advice.....slider dead straight ( checked with my 6 inch rule), and firmly in place. Tested with a jumper wire when the loco stops, as per Mikey, but nothing happens unless I touch the wheel wifh a fair amount of force, which moves the front of the loco sideways and then it powers up again.....the same happens on the other 3 way.....
I tested all my other 19 locos and they are ok except for my old 3309 BR 85 (converted to digital a number of years ago)....it reacts the same as the diesel loco....at slow speed it stops as it enters the 3 way...a slight push to the side and off it goes again.
solution? Run the diesel at a fair speed and it goes thru the 3 way with a slight hesitation....
Joe
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
thanks 2 users liked this useful post by Joe Meiring
Offline applor
#14 Posted : 29 June 2020 06:30:23(UTC)
applor

Australia
Joined: 21/05/2004(UTC)
Posts: 1,491
Location: Brisbane, Queensland
In my experience with K track the sliders don't need to be perfectly flat. The only problems I've had are with the older style sliders with the hole in the middle to access the screw.
The newer Marklin sliders have a bow shape to them and the Lilliput sliders have a flat middle and both ends are bent up at about 5 degrees or so.
Both work fine on my large K track layout of all switch types.
I also have the Glaskasten with a 7cm long slider and it has no problems with the long slider.

Joe what you can also do is with the jumper wire again connect one end to traction power and then (carefully) with the other end reach through the wheels and touch the slider.
If the slider contact is the problem it should then move.
I am assuming it will since you've use the same test for the wheels to earth and it made no difference.

Unfortunately I don't have a C track 3-way to look at but there will always be a contact point with a slider and the studs...
modelling 1954 Germany (era IIIa)
thanks 1 user liked this useful post by applor
Offline David Dewar
#15 Posted : 29 June 2020 10:32:05(UTC)
David Dewar

Scotland
Joined: 01/02/2004(UTC)
Posts: 6,924
Location: Scotland
Can you try fitting another slider Joe.
Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
thanks 1 user liked this useful post by David Dewar
Offline Joe Meiring
#16 Posted : 29 June 2020 11:22:33(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: David Dewar Go to Quoted Post
Can you try fitting another slider Joe.

The slider is unique to this loco as far as I am aware.....not common to any other loco? So I don't have a spare!
Tx David!
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline David Dewar
#17 Posted : 29 June 2020 13:10:40(UTC)
David Dewar

Scotland
Joined: 01/02/2004(UTC)
Posts: 6,924
Location: Scotland
Joe. The spare slider is part number 41 for the loco and you can remove the slider. I dont have the loco but it should be possible to fit another slider. If you can get one smaller (perhaps from another of your locos) just to try it and see if that works. IF it does then you can order another similar slider. AS your other locos appear in the main to go through the turnout OK then the slider looks like the problem. Its a nice loco so dont give up.
Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
thanks 1 user liked this useful post by David Dewar
Offline Joe Meiring
#18 Posted : 29 June 2020 13:17:12(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: applor Go to Quoted Post
In my experience with K track the sliders don't need to be perfectly flat. The only problems I've had are with the older style sliders with the hole in the middle to access the screw.
The newer Marklin sliders have a bow shape to them and the Lilliput sliders have a flat middle and both ends are bent up at about 5 degrees or so.
Both work fine on my large K track layout of all switch types.
I also have the Glaskasten with a 7cm long slider and it has no problems with the long slider.

Joe what you can also do is with the jumper wire again connect one end to traction power and then (carefully) with the other end reach through the wheels and touch the slider.
If the slider contact is the problem it should then move.
I am assuming it will since you've use the same test for the wheels to earth and it made no difference.

Unfortunately I don't have a C track 3-way to look at but there will always be a contact point with a slider and the studs...

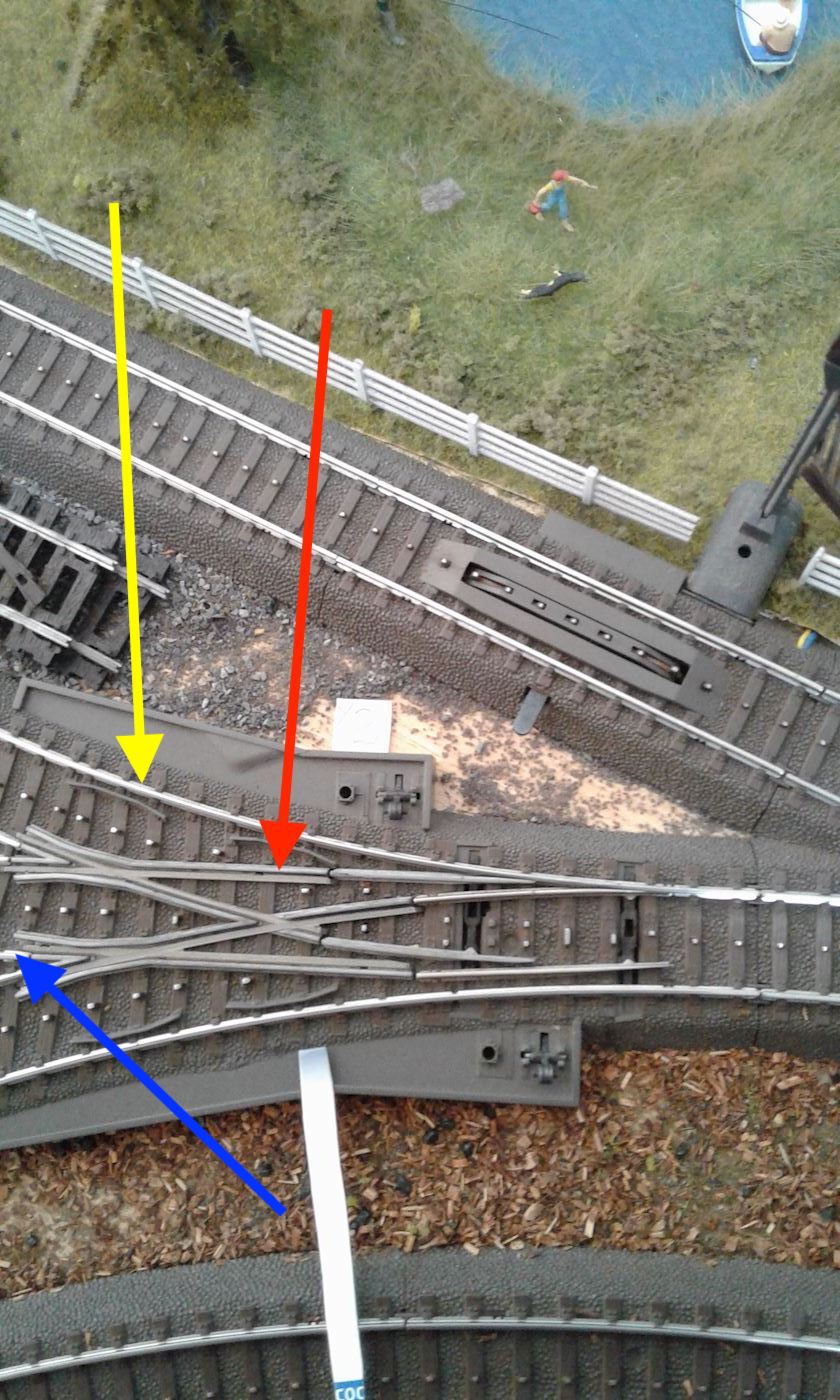

Right! Got to the spot where loco stops. Just as it enters the 3 way. I had connected a jumper wire to the slider beforehand. Touched one of the centre studs and loco lights up!! And off she goes. Same in reverse. Loco stops at the "dead spot", touch the centre stud an powers up...
Now....how do I go about rectifying this?!?!Confused
Thanks so much ....BigGrin
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline Joe Meiring
#19 Posted : 29 June 2020 13:39:04(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: David Dewar Go to Quoted Post
Joe. The spare slider is part number 41 for the loco and you can remove the slider. I dont have the loco but it should be possible to fit another slider. If you can get one smaller (perhaps from another of your locos) just to try it and see if that works. IF it does then you can order another similar slider. AS your other locos appear in the main to go through the turnout OK then the slider looks like the problem. Its a nice loco so dont give up.

Thanks for that David...I have the number E226495 for the replacement slider. It has 4 connecting lugs that hold the slider body in place? See my post to Eric a short while ago....
Never been very happy with my two 3 way points. I could of course redesign my shutting yards by replacing them with "normal" turnouts....I've had a few folk tell me that they love my layout design....but not the 3 ways....not realistic enoughBlink
I'll see if I can utilise a slider from one of my spare locos....thanks!ThumpUp

Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline David Dewar
#20 Posted : 29 June 2020 14:36:42(UTC)
David Dewar

Scotland
Joined: 01/02/2004(UTC)
Posts: 6,924
Location: Scotland
I would keep the three way turnouts which save space. I do think trying other sliders could solve the problem.
Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
thanks 1 user liked this useful post by David Dewar
Offline applor
#21 Posted : 29 June 2020 23:53:25(UTC)
applor

Australia
Joined: 21/05/2004(UTC)
Posts: 1,491
Location: Brisbane, Queensland
Originally Posted by: Joe Meiring Go to Quoted Post

Now....how do I go about rectifying this?!?!Confused
Thanks so much ....BigGrin



Before you do that I would also do some checks on the 3-way. With a multimeter do all the pukos show voltage? Can you pinpoint exactly where the slider loses power and the culprit puko?
You might be able to just mechanically fix the issue.

Otherwise in your situation and without replacing your 3-way turnouts you have two choices:

1) as advised replaced the slider. You say only 2 of your locos have this problem, so should be rather easy.
You haven't posted pictures of the slider so I don't know what it looks like and its fitment but if its a screw in slider then the Brawa slider 2225 should fit fine and resolve the problem.

2) add additional contact at the dead spot. You can either add a puko by drilling a small hole and add a loop of thin copper wire bent over at the top and then underneath connect it to traction power.
Or you can use 0.2mm steel wire as a 'bridge' across 2 or more pukos, again connect to traction power underneath.
modelling 1954 Germany (era IIIa)
thanks 1 user liked this useful post by applor
Offline dominator
#22 Posted : 30 June 2020 02:13:42(UTC)
dominator

New Zealand
Joined: 20/01/2015(UTC)
Posts: 850
Location: Kerikeri
Are the Puko's sticking up high enough near the rail. I guess yo know they should be slightly above. I have M track and have had to make adjustments on occasions to suit some locos, even though most work without a problem.

Dereck
Northland. NZ REMEMBER 0228 for ä
thanks 1 user liked this useful post by dominator
Offline Joe Meiring
#23 Posted : 30 June 2020 10:24:55(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: applor Go to Quoted Post
Originally Posted by: Joe Meiring Go to Quoted Post

Now....how do I go about rectifying this?!?!Confused
Thanks so much ....BigGrin



Before you do that I would also do some checks on the 3-way. With a multimeter do all the pukos show voltage? Can you pinpoint exactly where the slider loses power and the culprit puko?
You might be able to just mechanically fix the issue.

Otherwise in your situation and without replacing your 3-way turnouts you have two choices:

1) as advised replaced the slider. You say only 2 of your locos have this problem, so should be rather easy.
You haven't posted pictures of the slider so I don't know what it looks like and its fitment but if its a screw in slider then the Brawa slider 2225 should fit fine and resolve the problem.

2) add additional contact at the dead spot. You can either add a puko by drilling a small hole and add a loop of thin copper wire bent over at the top and then underneath connect it to traction power.
Or you can use 0.2mm steel wire as a 'bridge' across 2 or more pukos, again connect to traction power underneath.



Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline Joe Meiring
#24 Posted : 30 June 2020 10:46:07(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: applor Go to Quoted Post
Originally Posted by: Joe Meiring Go to Quoted Post

Now....how do I go about rectifying this?!?!Confused
Thanks so much ....BigGrin



Before you do that I would also do some checks on the 3-way. With a multimeter do all the pukos show voltage? Can you pinpoint exactly where the slider loses power and the culprit puko?
You might be able to just mechanically fix the issue.

Otherwise in your situation and without replacing your 3-way turnouts you have two choices:

1) as advised replaced the slider. You say only 2 of your locos have this problem, so should be rather easy.
You haven't posted pictures of the slider so I don't know what it looks like and its fitment but if its a screw in slider then the Brawa slider 2225 should fit fine and resolve the problem.

2) add additional contact at the dead spot. You can either add a puko by drilling a small hole and add a loop of thin copper wire bent over at the top and then underneath connect it to traction power.
Or you can use 0.2mm steel wire as a 'bridge' across 2 or more pukos, again connect to traction power underneath.

Thanks Eric. I've put up pics of the slider and the 3 way. My paper marker indicates where the loco stops. There is no screw in these sliders. Just little lugs that clip into place. It seems to me that the slider is missing the pukos at that position. At speed the momentum will carry it thru....
Going to try and add wire as a bridge....see if that helps....
Thanks, Joe

Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline Joe Meiring
#25 Posted : 30 June 2020 13:28:06(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
I've placed a thin piece of card on the inside of the rail....this then pushes the loco slightly away from me to the inside and no more stopping. Obviously the pushing of the loco toward the inside of the 3 way allows better contact with the slider and puko
Must still test the other locos to see there is no interference with their running....before doing anything "permanent"
Will keep posting....Thanx everyone!
Joe M
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Offline dickinsonj
#26 Posted : 30 June 2020 14:04:34(UTC)
dickinsonj

United States
Joined: 05/12/2008(UTC)
Posts: 1,325
Location: United States
Originally Posted by: Joe Meiring Go to Quoted Post
I've placed a thin piece of card on the inside of the rail....this then pushes the loco slightly away from me to the inside and no more stopping.
Joe M

That is interesting Joe, thanks for posting that.

I have some issues with my 3-way turnouts too, but they are mostly tracking errors and not electrical. I love the compact interchanges they provide but I don't like the appearance or the function of these turnouts very much.

Regards,
Jim

I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains!
I have models from Era I to Era VI, but I try to focus on Eras I & III. Whoops, that one got away from me. Let's just say I focus on cool trains, regardless of the particulars :-)
So many trains and so little time.
thanks 1 user liked this useful post by dickinsonj
Offline Joe Meiring
#27 Posted : 30 June 2020 16:59:32(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Originally Posted by: dickinsonj Go to Quoted Post
Originally Posted by: Joe Meiring Go to Quoted Post
I've placed a thin piece of card on the inside of the rail....this then pushes the loco slightly away from me to the inside and no more stopping.
Joe M

That is interesting Joe, thanks for posting that.

I have some issues with my 3-way turnouts too, but they are mostly tracking errors and not electrical. I love the compact interchanges they provide but I don't like the appearance or the function of these turnouts very much.


I agree Jim...not terribly realistic looking is it?! I only have 2 of these3 ways and both have issues. Besides the 2 locos I mentioned there are a few more locos that stall on the 3 ways if going slowly over them when I do shunting....also my v200...bit of a pain.. the card works fine, but not sure how long it will lastConfused
Stay safeThumpUp
Joe

Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
thanks 2 users liked this useful post by Joe Meiring
Offline applor
#28 Posted : 01 July 2020 23:45:43(UTC)
applor

Australia
Joined: 21/05/2004(UTC)
Posts: 1,491
Location: Brisbane, Queensland
Originally Posted by: Joe Meiring Go to Quoted Post

Thanks Eric. I've put up pics of the slider and the 3 way. My paper marker indicates where the loco stops. There is no screw in these sliders. Just little lugs that clip into place. It seems to me that the slider is missing the pukos at that position. At speed the momentum will carry it thru....
Going to try and add wire as a bridge....see if that helps....
Thanks, Joe





Yes I am pretty confident your issue is that slider design, with its dip in the middle and a hole as I have had this problem before as well (on different K track though).

When driving slow the puko loses contact at the dip/hole in the slider and due to the rail height and angle there is no other contact with other pukos.
modelling 1954 Germany (era IIIa)
thanks 2 users liked this useful post by applor
Offline dickinsonj
#29 Posted : 02 July 2020 01:50:23(UTC)
dickinsonj

United States
Joined: 05/12/2008(UTC)
Posts: 1,325
Location: United States
Originally Posted by: applor Go to Quoted Post

When driving slow the puko loses contact at the dip/hole in the slider and due to the rail height and angle there is no other contact with other pukos.


That is similar to the problem that I have with shorting on my narrow turnouts, usually when running rolling stock with short sliders and all with that dreaded hole. When the hole stops supporting the slider it drops down onto the crossing rail and that does anything from just sparking to shutting down that circuit's booster. I think something similar is the problem here, but it is stuck on the grounds and not getting any current from any puko.

I think that hole is the main problem here also and for my issues, which are different than yours, just tiny adjustments to the level of the slider has an amazing effect. What we really need is a slider of the same length but without that hole, which servers no purpose that I can see in this slider application. I know you can make your own but I don't have the time or resources and I just want a turnkey deal that I can stick in to replace the defective Märklin ones. It seems like Märklin could at least produce and sell the parts needed to make their equipment function correctly.

Good luck to you with this problem and you will probably figure this out on your own. But from what I can tell everything must be as close to spec as possible for reliable operation, and once achieved it is reasonably good. I have never had electrical issues with mine, but derailments, particularly on three axle trucks can only be avoided by creeping through these turnouts at yard speeds, which I guess is appropriate it is in a yard after all. BigGrin

Regards,
Jim

I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains!
I have models from Era I to Era VI, but I try to focus on Eras I & III. Whoops, that one got away from me. Let's just say I focus on cool trains, regardless of the particulars :-)
So many trains and so little time.
thanks 1 user liked this useful post by dickinsonj
Offline Joe Meiring
#30 Posted : 02 July 2020 17:29:56(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
I tested all my locos over my two 3 way turnouts at crawl speeds, and all those with the new "solid" type slider, without the indent and hole in the middle, have no issues crossing the 3 way - forward and/or reverse.
However, each and every loco fitted wifh the slider having the hole and indent/dip, stop on the 3 way....at slow speed, forward and reverse....
Just putting it out there for info...
Thanx to all for the hep!
Joe
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
thanks 3 users liked this useful post by Joe Meiring
Offline Goofy
#31 Posted : 04 July 2020 11:22:59(UTC)
Goofy


Joined: 12/08/2006(UTC)
Posts: 8,273
Three way turnout like C track are complex system.
For many years ago before digital era i did used K tracks three way turnout and sometimes there was problem by use slow speed.
It stucked!
You show a picture of C track and i find this three way turnout disgusting by use it on the layout.
The pick up shoe in short or long do have problem with the complex turnouts like three way in the three rail system.
I have not used this turnout since i was kid.
It is now about 45 years ago since i did used this turnout!
thanks 1 user liked this useful post by Goofy
Offline jvuye
#32 Posted : 04 July 2020 11:45:32(UTC)
jvuye

Belgium
Joined: 01/03/2008(UTC)
Posts: 2,837
Location: South Western France
Originally Posted by: Joe Meiring Go to Quoted Post
I tested all my locos over my two 3 way turnouts at crawl speeds, and all those with the new "solid" type slider, without the indent and hole in the middle, have no issues crossing the 3 way - forward and/or reverse.
However, each and every loco fitted wifh the slider having the hole and indent/dip, stop on the 3 way....at slow speed, forward and reverse....
Just putting it out there for info...
Thanx to all for the hep!
Joe


Just catching up...
Seems no one suggested to check wheel spacing on the loco.
Should be 13.8 mm between flanges.
If it's OK, then try adding 0.1 mm at the time on the outer ones (this has probably the same effect as the fine piece of cardboard ...Wink, pushing the loco back to the center )
Just a thought



Jacques Vuye aka Dr.Eisenbahn
Once a vandal, learned to be better and had great success!
thanks 3 users liked this useful post by jvuye
Offline Joe Meiring
#33 Posted : 04 July 2020 13:25:32(UTC)
Joe Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 90
Location: Fish Hoek, Cape Town
Someone?? suggested somewhere?? To bend the pukos slightly so that the slider having the indent/hole would still be able to get current...?!?...any thoughts on this??
Thanks Anders and Jacques.....
Medium digital C track layout with MS2: When I grow up I want to be a steam engine driver....
Users browsing this topic
OceanSpiders 2.0
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

| Powered by YAF.NET | YAF.NET © 2003-2020, Yet Another Forum.NET
This page was generated in 0.883 seconds.
