PeFu		#1 Posted : 14 May 2019 00:05:05(UTC) Retweet

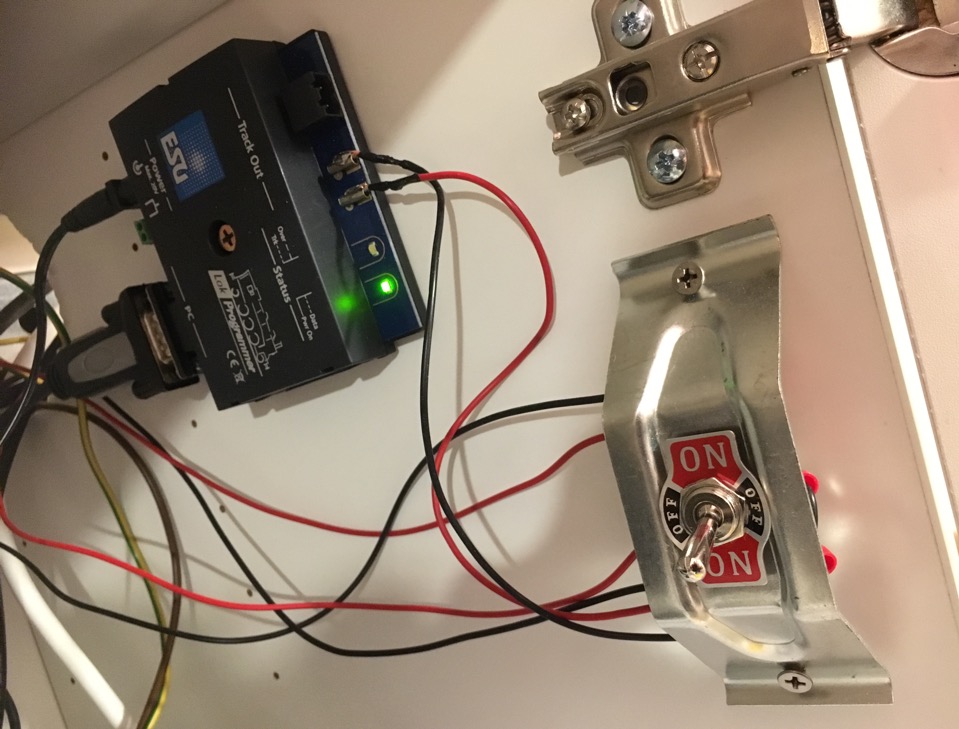

Joined: 30/08/2002(UTC) Posts: 1,291		I’ve received my first ESU LokProgrammer, and I must say the software is very nice and user-friendly. I added a 2-pole alteration switch (On-Off-On), installed everything in the ”power cabinet”, and now I can use either the CS2 programming features or the ESU LokProgrammer without risking interference. Also, at ”Off” I have a power-free track when adding new trains to the layout. Me like!
		Andreasburg-Mattiasberg Bahn is inspired by Swiss railways \|Forum Thread \|Track Plan \|Youtube Channel \| C and K track \| CS2 \| TrainController Gold

3 users liked this useful post by PeFu		dickinsonj, applor, Dave Banks
User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

TEEWolf		#2 Posted : 14 May 2019 02:12:37(UTC) Retweet
Joined: 01/06/2016(UTC) Posts: 2,465		Originally Posted by: PeFu I’ve received my first ESU LokProgrammer, and I must say the software is very nice and user-friendly. I added a 2-pole alteration switch (On-Off-On), installed everything in the ”power cabinet”, and now I can use either the CS2 programming features or the ESU LokProgrammer without risking interference. Also, at ”Off” I have a power-free track when adding new trains to the layout. Me like! Is it for programming only or is it as a decoder tester usable too? Quite expensive for 150 €.
		WWW

User Profile View All Posts by User View Thanks

applor		#3 Posted : 14 May 2019 06:09:27(UTC) Retweet
Joined: 21/05/2004(UTC) Posts: 1,776 Location: Brisbane, Queensland		Great idea! I wish I had a fixed programming track that connected to my layout for programming and to add/remove trains. I am not sure I can do it anymore. Originally Posted by: TEEWolf Is it for programming only or is it as a decoder tester usable too? Quite expensive for 150 €. Yes it lets you test all ESU decoders (including servos). Only limiting factor is protocol support is DCC and motorola, it can't test M4/MFX (you have to test with motorola), probably due to how M4 works.
		modelling era IIIa (1951-1955) Germany

1 user liked this useful post by applor		TEEWolf
User Profile View All Posts by User View Thanks

PeFu		#4 Posted : 14 May 2019 06:34:27(UTC) Retweet
Joined: 30/08/2002(UTC) Posts: 1,291		Originally Posted by: TEEWolf Is it for programming only or is it as a decoder tester usable too? Quite expensive for 150 €. Well it’s pretty advanced, a bit of a ”central station” as you both can program and test decoders. You can program all DCC decoders, including the DCC part of Märklin decoders. For other Märklin decoders, it’s nice to have the CS2 programming features. ESU LokProgrammer can also add downloaded sound files to ESU decoders. The below clip gives an overview (The testing features starts at 4 min 20 sec):
		Andreasburg-Mattiasberg Bahn is inspired by Swiss railways \|Forum Thread \|Track Plan \|Youtube Channel \| C and K track \| CS2 \| TrainController Gold

1 user liked this useful post by PeFu		TEEWolf
User Profile View All Posts by User View Thanks

Purellum		#5 Posted : 14 May 2019 07:02:31(UTC) Retweet
Joined: 08/11/2005(UTC) Posts: 3,529 Location: Mullerup, 4200 Slagelse		Originally Posted by: PeFu Originally Posted by: TEEWolf Is it for programming only or is it as a decoder tester usable too? Quite expensive for 150 €. Well it’s pretty advanced, a bit of a ”central station” as you both can program and test decoders. You can program all DCC decoders, including the DCC part of Märklin decoders. For other Märklin decoders, it’s nice to have the CS2 programming features. ESU LokProgrammer can also add downloaded sound files to ESU decoders. The below clip gives an overview (The testing features starts at 4 min 20 sec): It's a great kit Per.
		If you can dream it, you can do it! I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide. In case this is not legally possible: I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.


User Profile View All Posts by User View Thanks

Gregor		#6 Posted : 14 May 2019 08:46:50(UTC) Retweet
Joined: 17/04/2003(UTC) Posts: 997 Location: Netherlands		I am installing a rotary switch to connect the programming track alternatively to: 1. Intellibox normal track 2. Intellibox programming track 3. ESU Lokprogrammer 4. Märklin Mobile Station My programming track is a separate roller bed and a dedicated section on the layout, so I can program trains without taking them off the track. When rotary switch is not in Position 1, power to the rest of the layout (controlled by Intellibox) is shut down. This prevents a train from driving unintentionally from into the programming track, thus connecting the outputs from two differente control systems. Best regards, Gregor


User Profile View All Posts by User View Thanks
