 Joined: 10/05/2019(UTC) Posts: 3
|
Hello everyone ! Thanks for adding me as a new member. I tried to draw a very simple and basic figure 8 track plan...but it doesn't work ! What can I do ? Thanks for your help. Sorry if this question has been asked too many times before.
|
 2 users liked this useful post by Berryman
|
|
|
|
 Joined: 16/11/2011(UTC) Posts: 5,843 Location: Hybrid Home
|
|
|
4 users liked this useful post by Alsterstreek
|
|
|
|
Joined: 10/05/2019(UTC) Posts: 3
|
|
1 user liked this useful post by Berryman
|
|
|
|
Joined: 10/05/2019(UTC) Posts: 3
|
The 24071 track sections are too expensive for me. That's why I don't want to use them..
|
|
|
|
|
|
 Joined: 09/02/2010(UTC) Posts: 234
|

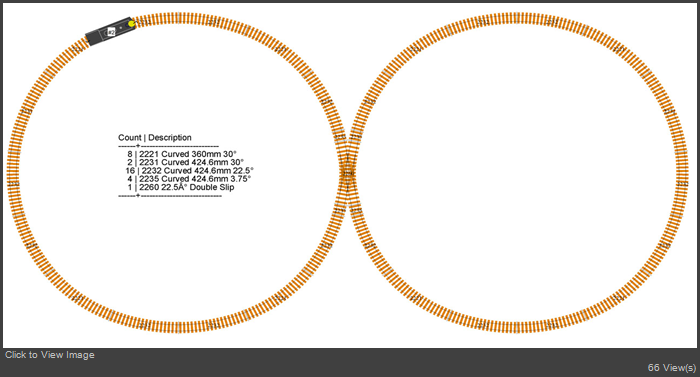

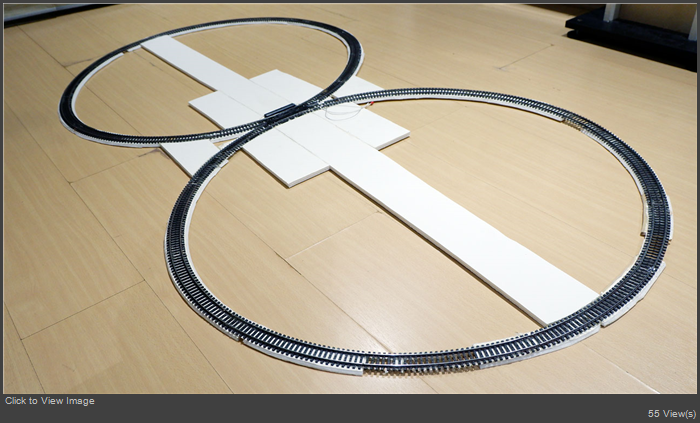

Probably K-track will be cheaper? This is my test-track to test run or to program a locomotive. Double slip 2260 can be substituted by 2 pcs of 2206 (one on a bridge above the other).
|
2 users liked this useful post by tiono
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,843 Location: Hybrid Home
|
Originally Posted by: Berryman  The 24071 track sections are too expensive for me. That's why I don't want to use them.. What is your C track inventory then? |
|
|
|
|
|
|
 Joined: 12/12/2005(UTC) Posts: 2,448 Location: Wellington, New_Zealand
|
Originally Posted by: Berryman I tried to draw a very simple and basic figure 8 track plan...but it doesn't work While your posted diagram shows a 24649 you do not state this as a requirement. Using a 24640(24624) may be an alternative If you wish to persue the use of the 24649 then you may vary the earlier suggested solution by moving the 24206 segments slightly to allow changing the 24071 to 24077s  If you are after - only the most common track segments (best bang for your buck) - wish to remove the tight "S" - show off "progressive" curving (Straight into R2 into R1 out to R2 out to straight) - have a nice visual run for a long train - offer tidier geometry for variation (because of its 2 axis symmetry) - - can replace the 4 x 24230s with 4 x 24330s (#1) - - can replace 4 x 24130s with 4 x 24230s (thus giving "progressive" curving ( R3 into R2 into R1 out to R2 out to R3)) (#1) - - can replace the 4 x 24224s with 8 x 24912s - The 24224s may be replaced with turnouts 24671/2 to join the upper and/or lower humps (need 8x 24172 + 1 x24075) #1 adding 4 x 24330s and relocating the 4 x 24230 will mean adding a 24077 in each of the straight legs #2 altering the 4 x 24224s to 8 x 24912s will mean reconfiguring each 4 x 24188s section to 3 x 24172 + 1 x 24094 ...  Edited by user 13 May 2019 23:42:06(UTC)
| Reason: Not specified |
Peter
|
7 users liked this useful post by clapcott
|
|
|
|
Joined: 21/01/2006(UTC)
Posts: 43
Location: Singapore
|
Hi everybody I design this figure-8 plan using SCARM software but I have not tried it with actual C-track.  SORRY if picture doesn't show! Edited by user 01 January 2020 01:24:11(UTC)
| Reason: picture didn't appear |
M-track - Era III-IV with 6021, Billerbahn. |
1 user liked this useful post by tank_brd
|
|
|
|
 Joined: 21/09/2012(UTC) Posts: 1,730 Location: Toronto
|
Originally Posted by: Alsterstreek This looks good; would be even better if the circles were on top of each other at the centre. |
|
1 user liked this useful post by baggio
|
|
|
|
