evillarreal		#1 Posted : 03 January 2018 01:28:33(UTC) Retweet
Joined: 02/06/2016(UTC) Posts: 8 Location: La Paz, La Paz		Hi everybody, Does anyone have an exploded view in PDF file for this locomotive (30159) or a link to get it? I have for the 3015 and they are not the same, Thanks in advance.


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

Dave Banks		#2 Posted : 03 January 2018 05:26:21(UTC) Retweet
Joined: 08/03/2006(UTC) Posts: 1,026 Location: Gold Coast, Australia.		This is all I could find: https://medienpdb.maerklin.de/pr...es/1/pdf/31100_explo.pdf
		D.A.Banks

1 user liked this useful post by Dave Banks		evillarreal
User Profile View All Posts by User View Thanks

steventrain		#3 Posted : 03 January 2018 09:39:48(UTC) Retweet
Joined: 21/10/2004(UTC) Posts: 31,609 Location: United Kingdom		30159 run with analog only. Decoder not fitted.
		Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.

1 user liked this useful post by steventrain		evillarreal
User Profile View All Posts by User View Thanks

Markus Schild		#4 Posted : 03 January 2018 10:02:13(UTC) Retweet
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg		Hi, which information are you looking for? Technically you can use the sheet for 3015, it is fully correct. A sheet for 30159 was never published. The only difference would have been the numbers for the brown parts. Regards Markus
		WWW
1 user liked this useful post by Markus Schild		evillarreal
User Profile View All Posts by User View Thanks

evillarreal		#5 Posted : 09 February 2018 00:11:12(UTC) Retweet
Joined: 02/06/2016(UTC) Posts: 8 Location: La Paz, La Paz		Originally Posted by: Dave Banks This is all I could find: https://medienpdb.maerklin.de/pr...es/1/pdf/31100_explo.pdf Thanks Dave! The link doesn´t work anemore.


User Profile View All Posts by User View Thanks

evillarreal		#6 Posted : 09 February 2018 00:17:21(UTC) Retweet
Joined: 02/06/2016(UTC) Posts: 8 Location: La Paz, La Paz		Originally Posted by: steventrain 30159 run with analog only. Decoder not fitted. Thanks for the post Steven!


User Profile View All Posts by User View Thanks

evillarreal		#7 Posted : 09 February 2018 00:25:14(UTC) Retweet
Joined: 02/06/2016(UTC) Posts: 8 Location: La Paz, La Paz		Originally Posted by: Markus Schild Hi, which information are you looking for? Technically you can use the sheet for 3015, it is fully correct. A sheet for 30159 was never published. The only difference would have been the numbers for the brown parts. Regards Markus Thanks Markus, I usually try to have all possible information about the locomotives I own, I couldn´t find the exact one. As you posted, they are almost the same but with a small difference in the direction switch.


User Profile View All Posts by User View Thanks

RayF		#8 Posted : 09 February 2018 00:28:17(UTC) Retweet
Joined: 14/03/2005(UTC) Posts: 15,840 Location: Gibraltar, Europe		Originally Posted by: evillarreal Originally Posted by: Dave Banks This is all I could find: https://medienpdb.maerklin.de/pr...es/1/pdf/31100_explo.pdf Thanks Dave! The link doesn´t work anemore. Try it like this: https://medienpdb.maerklin.de/pr...es/1/pdf/31100_explo.pdf If clicking on it doesn't work then copy the URL and paste it into the address field.
		Ray Mostly Marklin.Selection of different eras and European railways Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.

1 user liked this useful post by RayF		evillarreal
User Profile View All Posts by User View Thanks

evillarreal		#9 Posted : 09 February 2018 00:54:11(UTC) Retweet

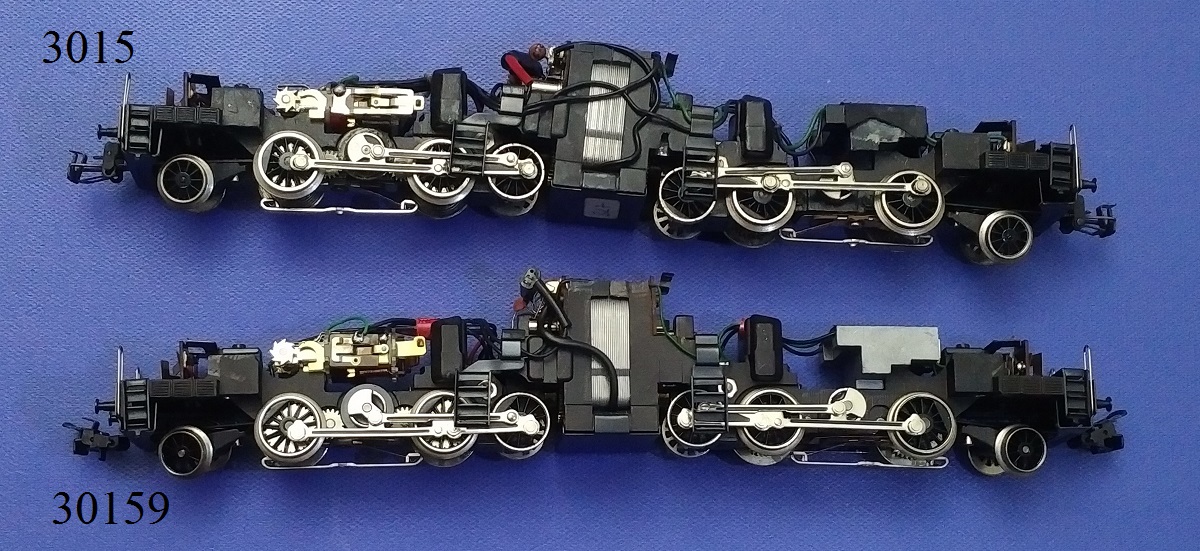

Joined: 02/06/2016(UTC) Posts: 8 Location: La Paz, La Paz		Thanks all of you for the promptly answers! Honestly, it was my first post in this forum and I was expecting an email notification that never came in until I got here back, sorry for the delay. I got my train in 1974 when I was 9 years old, played hard many years until early '80 the stopped running. A few years ago I sent my locos for overhaulin' and started back learning again. I'm a beginner with small knowledge but with big enthusiasm. These huges Crocodiles where my dream ever since I saw them in catalogs. Lucky me, I got them now. On the pictures attached you´ll see the small differences in the switches. Thanks again to everyone! Märklin 3015 and 30159 inside Right Märklin 3015 and 30159 inside Upper Märklin 3015 and 30159 inside Left

1 user liked this useful post by evillarreal		Gilbert_Ives
User Profile View All Posts by User View Thanks

evillarreal		#10 Posted : 09 February 2018 00:59:56(UTC) Retweet
Joined: 02/06/2016(UTC) Posts: 8 Location: La Paz, La Paz		Originally Posted by: RayF Originally Posted by: evillarreal Originally Posted by: Dave Banks This is all I could find: https://medienpdb.maerklin.de/pr...es/1/pdf/31100_explo.pdf Thanks Dave! The link doesn´t work anemore. Try it like this: https://medienpdb.maerklin.de/pr...es/1/pdf/31100_explo.pdf If clicking on it doesn't work then copy the URL and paste it into the address field. Thanks Ray, It worked!


User Profile View All Posts by User View Thanks

river6109		#11 Posted : 09 February 2018 01:17:26(UTC) Retweet
Joined: 22/01/2009(UTC) Posts: 14,728 Location: On 1965 Märklin Boulevard just around from Roco Square		Another option you have with this or any other 3015 type loco if you decide to operate it under digital is a permanent magnet from ESU (part number 51965) I had the digital version but sold it as I found it was to colossal with my other crocodile and even more with my Roco crocodiles.
		https://www.youtube.com/river6109 https://www.youtube.com/6109river 5 years in Destruction mode 50 years in Repairing mode
		WWW
1 user liked this useful post by river6109		evillarreal
User Profile View All Posts by User View Thanks

Eurobahnfan		#12 Posted : 09 February 2018 17:43:34(UTC) Retweet
Joined: 09/08/2008(UTC) Posts: 411 Location: Stockton, CA		"Colossal" is one of the reasons I like both of mine

3 users liked this useful post by Eurobahnfan		evillarreal, GaryTrooper, Gilbert_Ives
User Profile View All Posts by User View Thanks

Markus Schild		#13 Posted : 09 February 2018 17:59:05(UTC) Retweet
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg		Originally Posted by: evillarreal On the pictures attached you´ll see the small differences in the switches. Hi, The 3015 shown has the switch 208660. This version of the switch was used until the late 1960s. Later 3015 in 1970s have the same switch 234000 as shown in the 30159. Regards Markus
		WWW
1 user liked this useful post by Markus Schild		evillarreal
User Profile View All Posts by User View Thanks

GaryTrooper		#14 Posted : 15 February 2018 05:30:13(UTC) Retweet
Joined: 26/01/2018(UTC) Posts: 392 Location: Hailey, Idaho		Aren't these just beautiful machines? Just awesome to look at.
		G - LGB O - Lionel and MTH HO - Marklin N - Mix of manufacturers mostly Kato

1 user liked this useful post by GaryTrooper		evillarreal
User Profile View All Posts by User View Thanks
