Hello, Everyone.

On this cold Sunday afternoon in Toronto, I have been trying to put together a simple reverse look using M tracks and R0 curves (286 mm, the ones that M does not make in C track) as well as straight M tracks. No luck. Angry

Could someone please tell me if there is a standard M track reverse loop configuration, showing all parts needed in the small size I mentioned?

Thank you.

BigGrin
Offline kiwiAlan
#2 Posted : 15 May 2016 20:09:38(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 4,543
Location: ENGLAND, Didcot
Originally Posted by: baggio Go to Quoted Post
Hello, Everyone.

On this cold Sunday afternoon in Toronto, I have been trying to put together a simple reverse look using M tracks and R0 curves (286 mm, the ones that M does not make in C track) as well as straight M tracks. No luck. Angry

Could someone please tell me if there is a standard M track reverse loop configuration, showing all parts needed in the small size I mentioned?

Thank you.

BigGrin


No, those only came in 45 degree segments, not 30 degree like the 5100 curves. Most stock will not run on them anyway, so they are not much use for anything.

thanks 1 user liked this useful post by kiwiAlan
Offline baggio
#3 Posted : 15 May 2016 23:26:29(UTC)
baggio

Canada
Joined: 21/09/2012(UTC)
Posts: 1,659
Location: Toronto
Thank you, Kiwialan for your superfast response. ThumpUp

What about using straight C track, R1 radius, is there a standard set up I could follow to do a reverse loop?

Any suggestions would be greatly appreciated.. BigGrin
Offline Alsterstreek
#4 Posted : 16 May 2016 08:46:28(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,537
Location: Southwesternmost
Originally Posted by: baggio Go to Quoted Post
What about using straight C track, R1 radius, is there a standard set up I could follow to do a reverse loop?

E.g., 24611 + 24172 + 24172 + 24188 + 24224 + 8*24130 + 24071 + 2*24130 - see posts 5 and 6 in this thread:

https://www.marklin-user...pieces-please#post386441
thanks 1 user liked this useful post by Alsterstreek
Offline Angus
#5 Posted : 16 May 2016 12:03:58(UTC)
Angus

South Africa
Joined: 27/01/2012(UTC)
Posts: 202
Location: Johannesburg
Using M-track, the turnout could be any of 5117 (L or R), 5118 or 5119, straights 3 x 5106, curves 11 x 5100.

(Sorry battling to post a pic)
thanks 1 user liked this useful post by Angus
Offline PMPeter
#6 Posted : 16 May 2016 15:53:52(UTC)
PMPeter

Canada
Joined: 04/04/2013(UTC)
Posts: 979
Location: Port Moody, BC
Originally Posted by: baggio Go to Quoted Post
Thank you, Kiwialan for your superfast response. ThumpUp

What about using straight C track, R1 radius, is there a standard set up I could follow to do a reverse loop?

Any suggestions would be greatly appreciated.. BigGrin


I suggest downloading SCARM and playing with the track type and space that you have available to come up with a configuration that suits your situation. It's free and the developer is a member of this forum. It's very easy to use for something like this.
thanks 1 user liked this useful post by PMPeter
Offline scraigen
#7 Posted : 16 May 2016 21:13:50(UTC)
scraigen


Joined: 29/01/2009(UTC)
Posts: 197
Location: Sheffield,

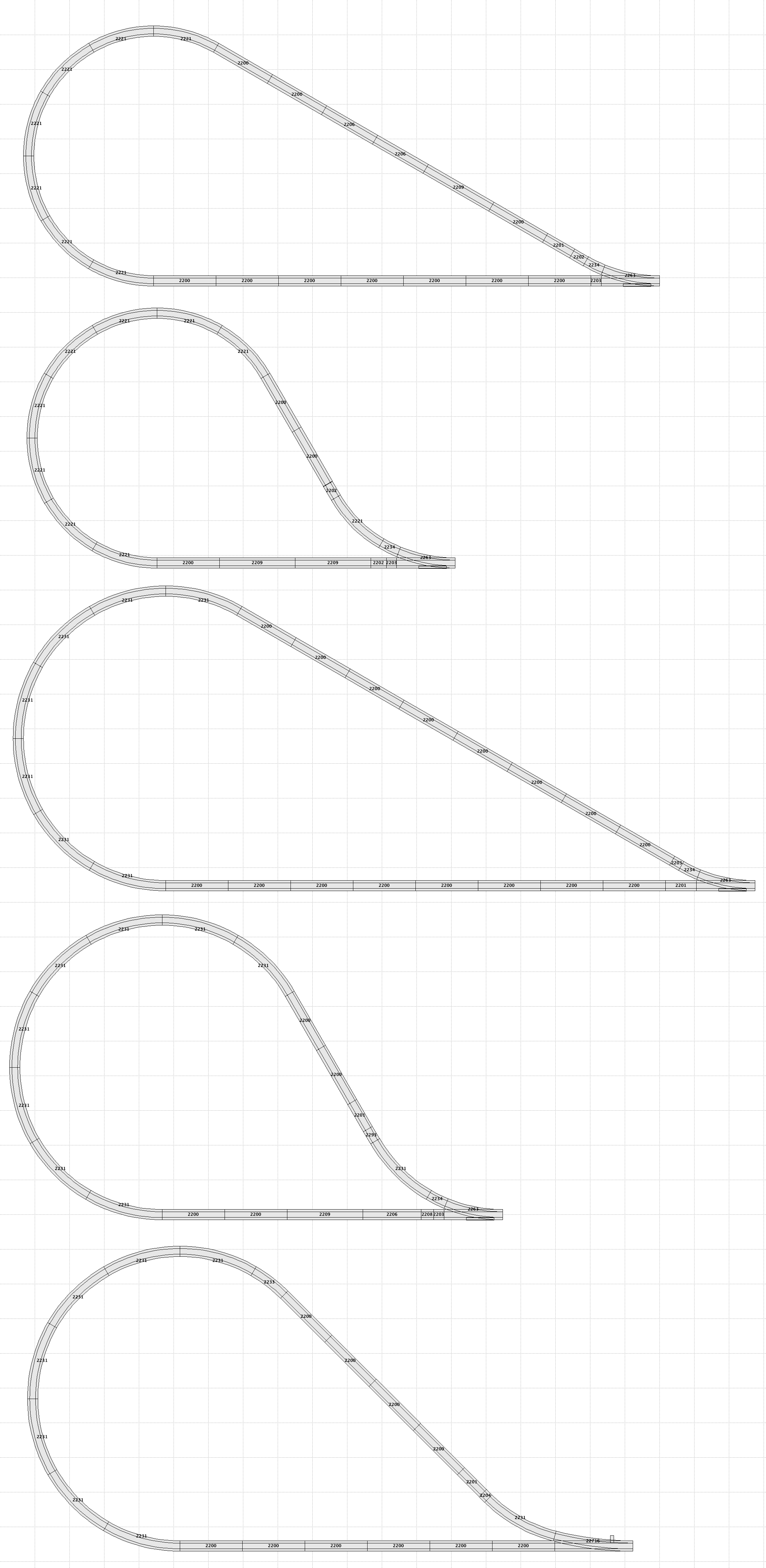

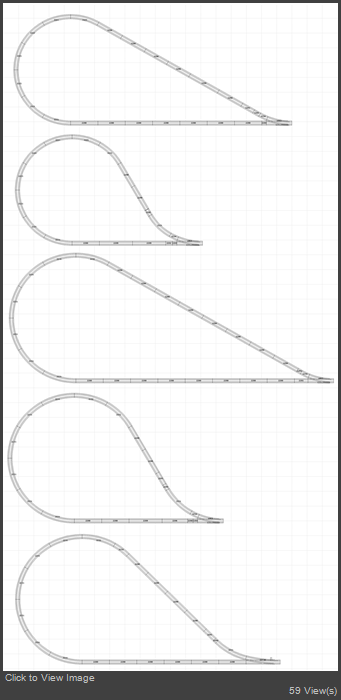

Some C-Track reversing loops, you may have to download them to make out the part numbers.
Must build something
thanks 1 user liked this useful post by scraigen
Offline scraigen
#8 Posted : 16 May 2016 21:18:23(UTC)
scraigen


Joined: 29/01/2009(UTC)
Posts: 197
Location: Sheffield,

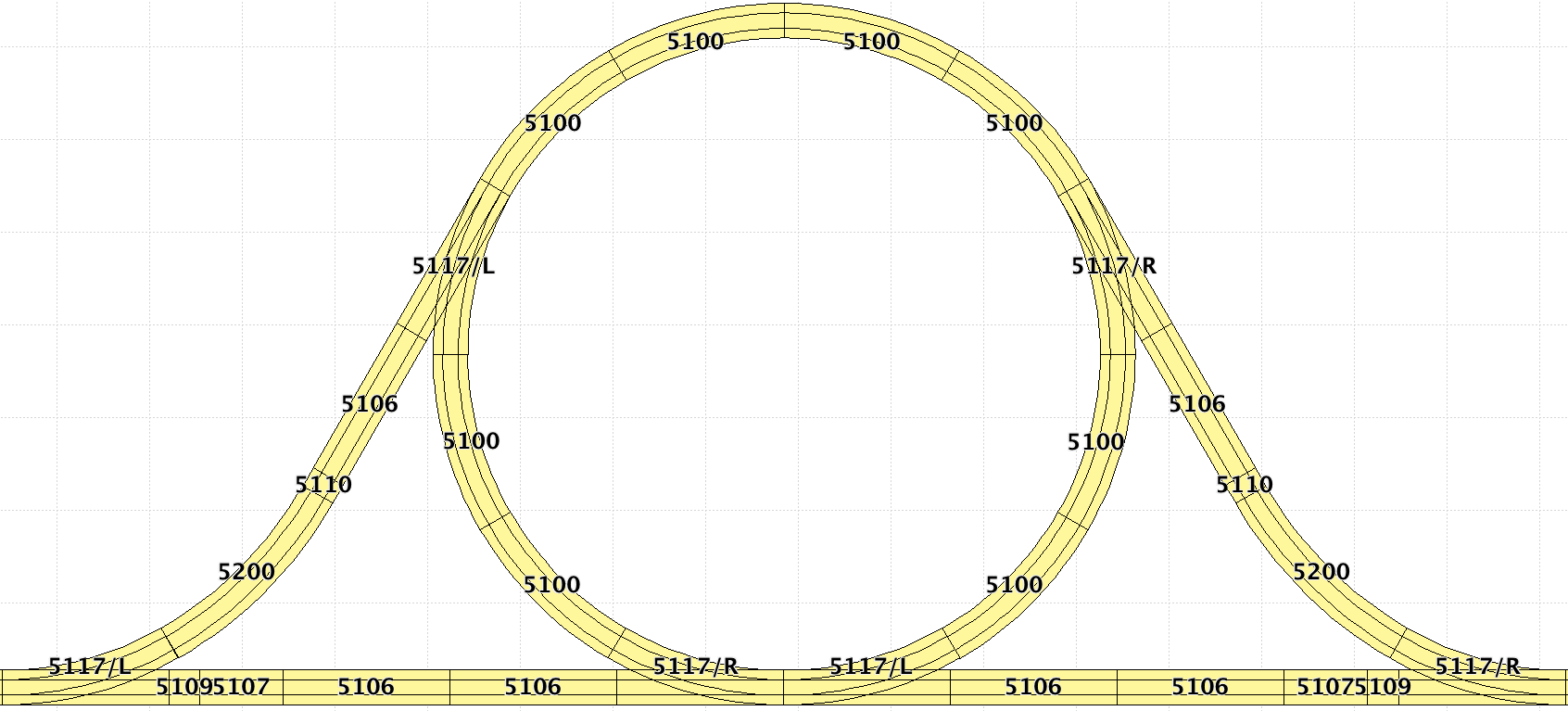

An M-track double overlapping reverse loop, obviously simple to modify for either a single left or right loop.

The four points on the circle can all be sprung and never need changing, just use the points at the two extremes to direct traffic into the reverse loop.

I built this and it works really really well.

thin 6a-reversingloop.png
Must build something
thanks 3 users liked this useful post by scraigen
Offline scraigen
#9 Posted : 16 May 2016 21:42:17(UTC)
scraigen


Joined: 29/01/2009(UTC)
Posts: 197
Location: Sheffield,

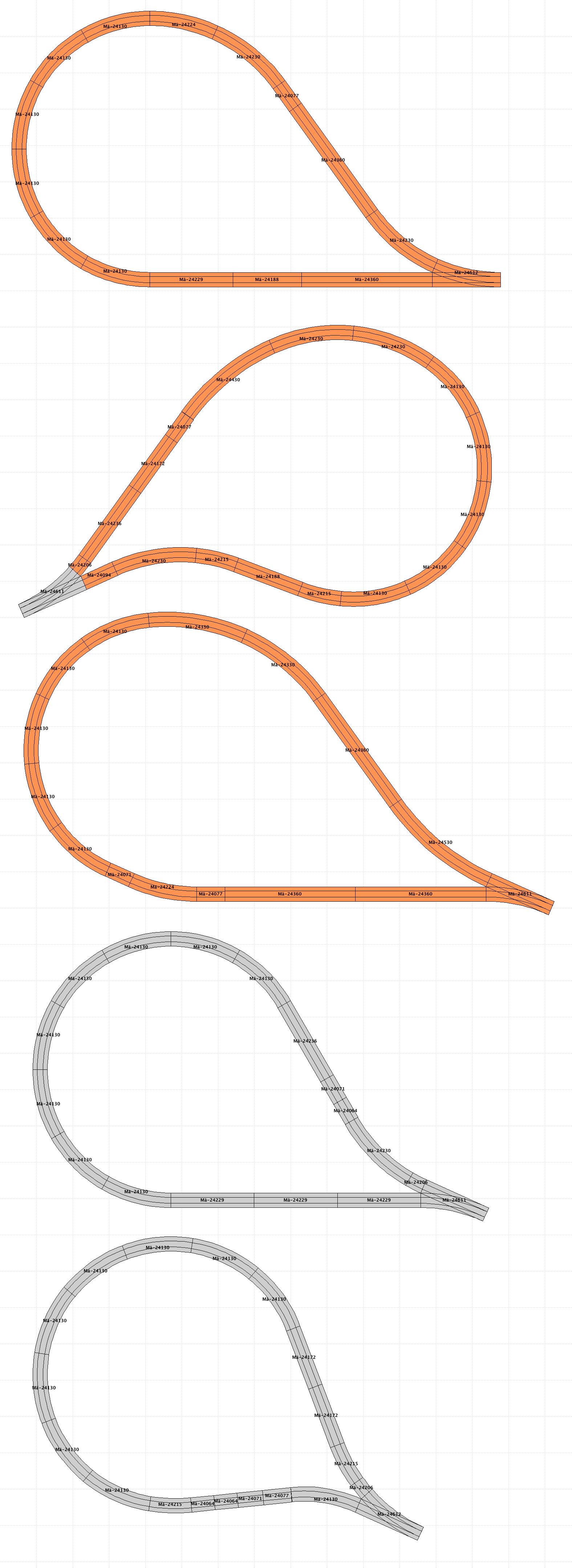

And finally some K-Track reversing loops.
Must build something
thanks 2 users liked this useful post by scraigen
Offline Markus Schild
#10 Posted : 16 May 2016 21:44:09(UTC)
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,752
Location: Wurttemberg
Hi,

That's my solution for a 5120 - loop:

UserPostedImage

Regards

Markus
thanks 2 users liked this useful post by Markus Schild
Offline baggio
#11 Posted : 17 May 2016 04:56:42(UTC)
baggio

Canada
Joined: 21/09/2012(UTC)
Posts: 1,659
Location: Toronto
THANK YOU! to all of you. BigGrin

I am a bit overwhelmed with all the feedback I got and will need a bit of time to digest it. ThumpUp

Once I come up with the best solution for me, I will let you all know and show you in pictures what I come up with.





Offline Markus Schild
#12 Posted : 17 May 2016 17:58:06(UTC)
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,752
Location: Wurttemberg
Hi,

Another version with 5120. The small piece is 5109.

UserPostedImage

Regards

Markus
thanks 1 user liked this useful post by Markus Schild
Offline baggio
#13 Posted : 19 May 2016 03:37:15(UTC)
baggio

Canada
Joined: 21/09/2012(UTC)
Posts: 1,659
Location: Toronto
Well, I digested all the great suggestions I received and came up with solution of my own.

Following the model of a reverse loop, I adapted that plan to make two separate loops of sorts that do not reverse but still suit my purposes.

I have now added one extra oval that has a herring bone, much like the one that Mike C. showed me at the exhibition last year at the Dutch senior citizens home. Thank you, Mike. ThumpUp

Since I needed a size that was less than an R1 radius, owing to space limitations on the layout, and was concerned that the M tracks would be too small, I used the K tracks I recently dismantled. The result has been really good. BigGrin

On the new herring bone K track layout I can run almost anything I like, including my famous FS 424 loco pulling the three new illuminated coaches I got for Christmas from my wife (cat no. 43570). Interestingly enough, on the K tracks, the noise of the slider almost completely vanishes and it is a real pleasure to see the train go so smoothly on these K tracks. Laugh

I have a pet project of creating an imaginary train from Toronto to Rome and each loop is intended for each one of the two cities.

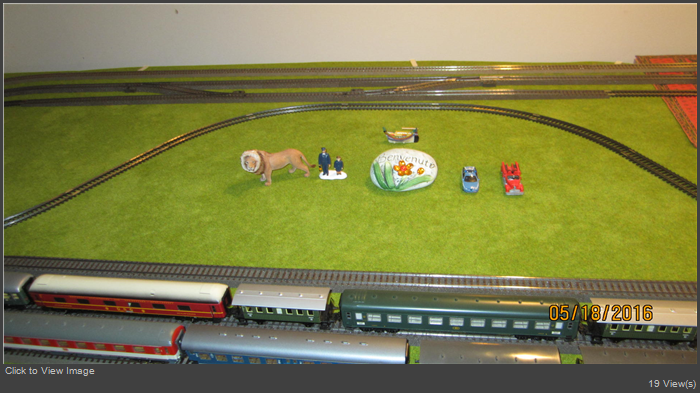

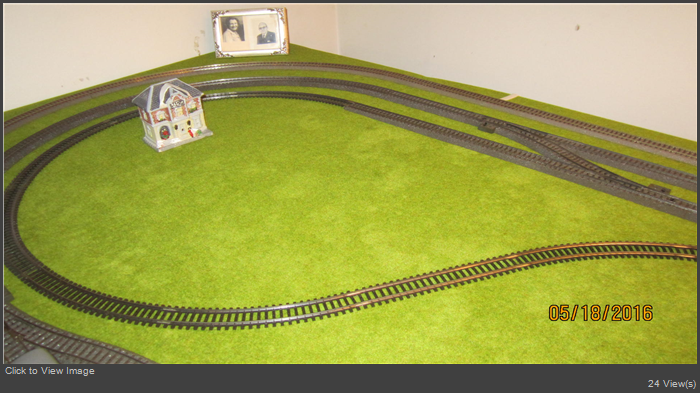

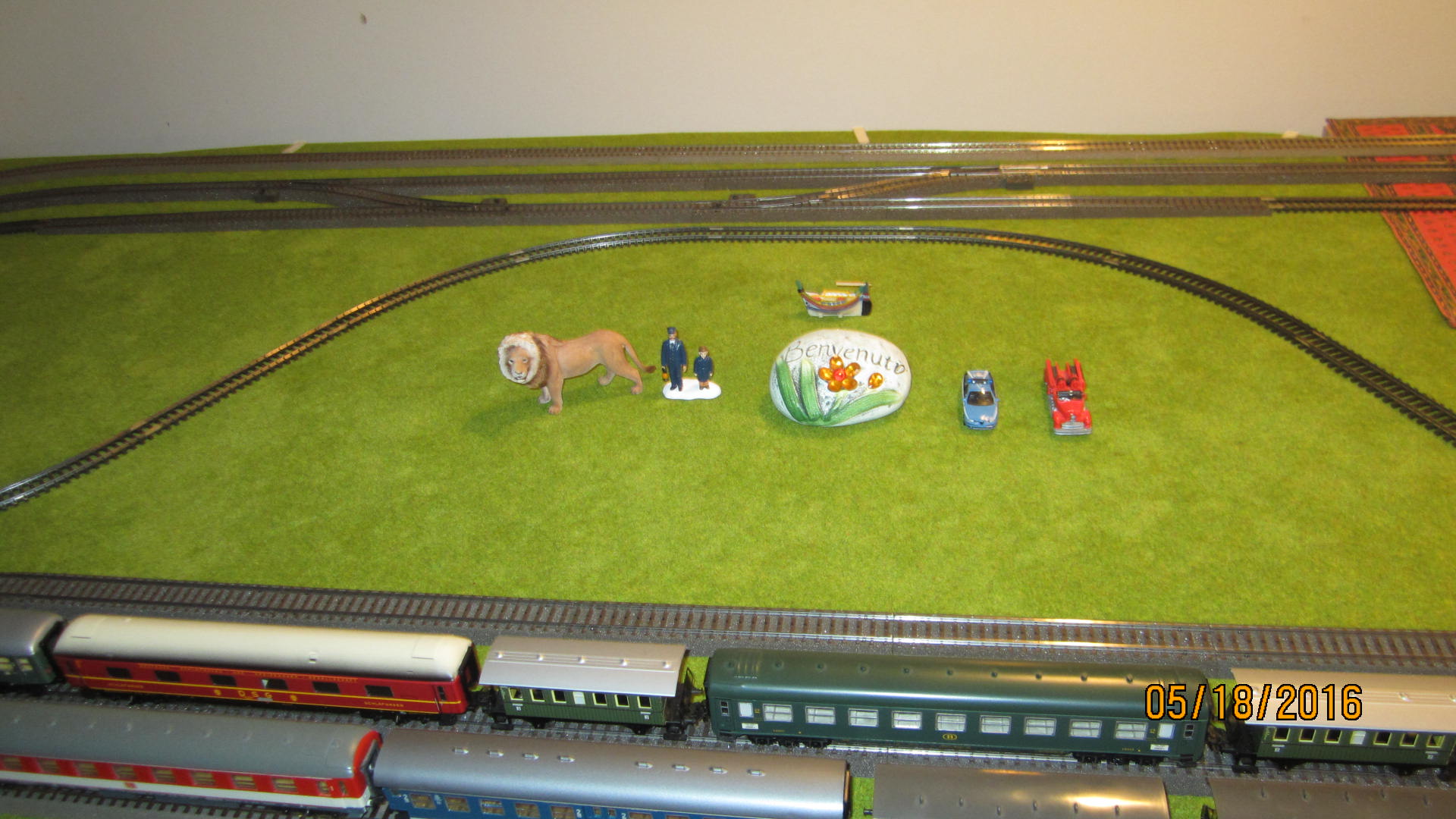

In the pictures below, the first picture shows the centre of the layout; in the second picture you can see the Colosseum surrounded by my FS 424 and the three 43570 coaches mentioned above; the last picture shows on the opposite end the Toronto station - I will get asap a CN Tower to put there. (The photo shows my parents, now gone. My father is the one who got me into this hobby about 50 years ago.)

Overall, thanks to all your initial suggestions, my layout has greatly improved. Life is good. BigGrin ThumpUp ThumpUp

New train layout - May 18, 2106 003.jpgNew train layout - May 18, 2106 001.jpgNew train layout - May 18, 2106 002.jpg
