Offline EB421
#51 Posted : 08 December 2025 15:02:29(UTC)
EB421

United Kingdom
Joined: 10/04/2025(UTC)
Posts: 71
Location: UK

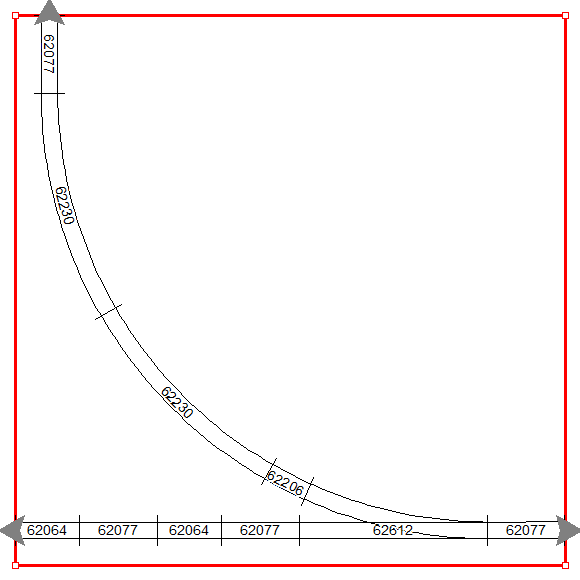

CLACKS550 R2 fork

Here's an example showing a CLACK550 module with a fork, with the new 15mm margin. Technically the straight is out of spec as it's 0.1mm short of flush. I'm optimistic it will work in practice as even the CLACK300 module has a longer overhang.
thanks 2 users liked this useful post by EB421
Offline EB421
#52 Posted : 09 December 2025 12:34:36(UTC)
EB421

United Kingdom
Joined: 10/04/2025(UTC)
Posts: 71
Location: UK
My 24236+24064 have arrived for the first modules. No one has demurred so the ayes have it. Road cross-section is now 60*10, edge margin for both C-Track and road is now 15mm.
thanks 2 users liked this useful post by EB421
Offline EB421
#53 Posted : 09 December 2025 14:12:16(UTC)
EB421

United Kingdom
Joined: 10/04/2025(UTC)
Posts: 71
Location: UK

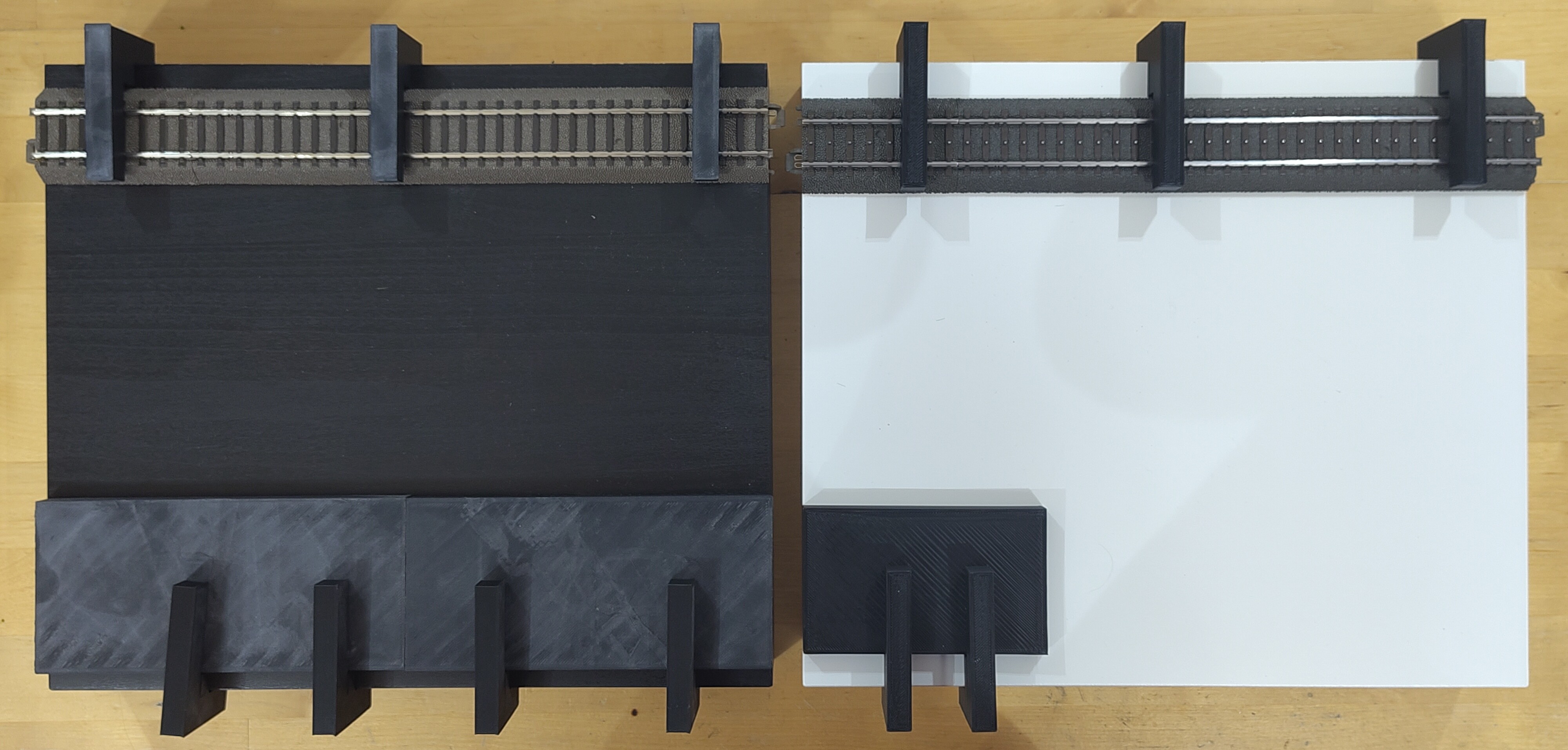

Side by side of the original concept CLACK300 and the final design.

And there - here's a side-by-side of the OG CLACK300 design and the final version. As I said, I'll be putting glue down now I have the "dual-mode" track here - so this will become the official standard for interconnects! :)
thanks 4 users liked this useful post by EB421
