Offline gamolina
#1 Posted : 31 January 2020 16:30:20(UTC)
gamolina

Argentina
Joined: 03/10/2012(UTC)
Posts: 54
Location: Buenos Aires
Hello, I have a new 36344 Diesel BR333 with the following problem:
Both Telex are always up.
I saw the decoders configuration with my Cs3+ and I see for F1 and F4 that the outputs 3 and 4 disable with a value of 60
Can soneone who has this loco, check this?
I want to avoid sending it to Märklin...

Greetings Guillermo

Offline JohnjeanB
#2 Posted : 31 January 2020 21:07:38(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,115
Location: Paris, France
Hi Guillermo

I have a number of locos with Telex couplers (among which a Köf III 26340) (total approx 20 couplers)
I have battled sometimes with a very few of them, openend one and here are my findings.
They are very good couplers that work not with Relex couplers.
Never ever try to lubricate them (if you have then only 2 solutions; 1- open and clean them; 2- replace them.
On a brand new loco check if the pin can go down (w/o power) if it does spontaneously then the telex is OK (problem is the decoder / wiring)

If the pin occasionally sticks then a little bit of gym can help with a CS2 or CS3 to activate the Telex for 1 seconds des-activate for 4 seconds. Let it run some time and it will be OK

If the pin is called when you power-up, I recommend to re-initialise the loco . If it does not work, a return to Märklin could be the solution.

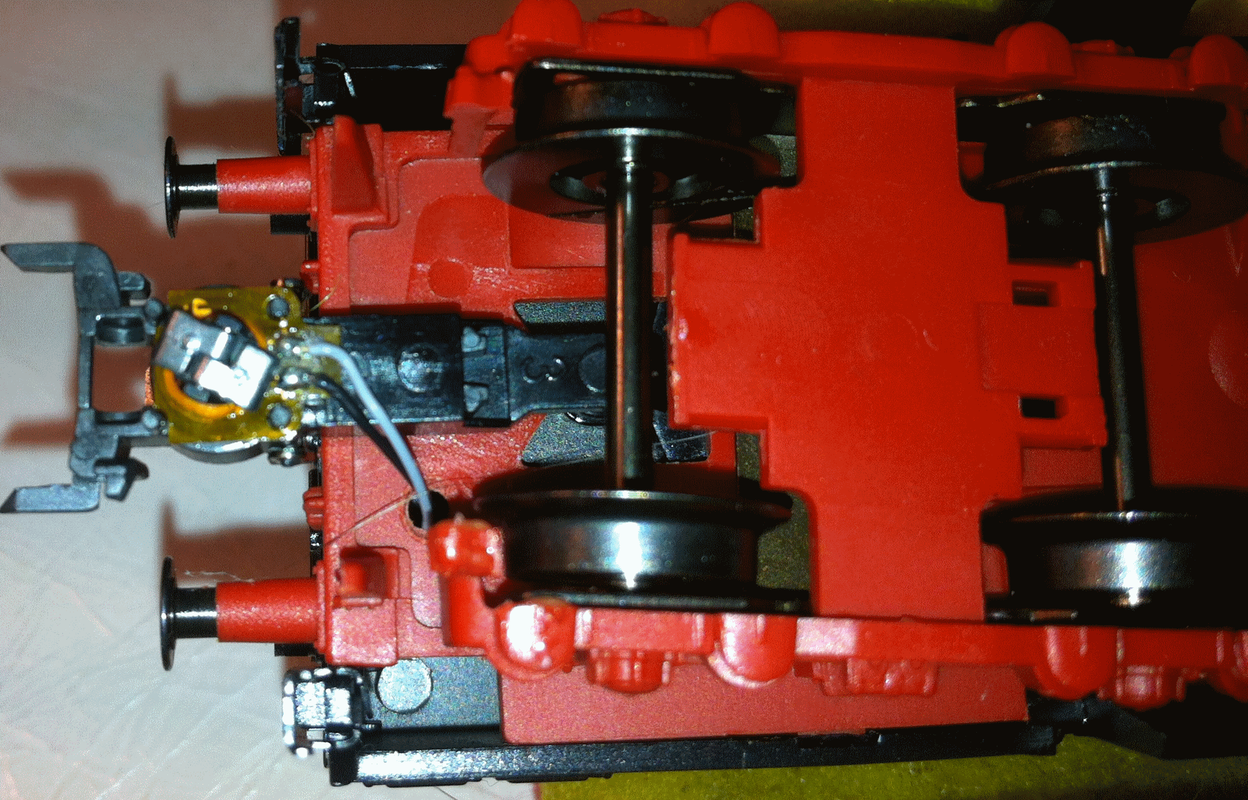

Here is an opened one on a brand new machine I had to repair (Märklin is not very in this kind of things)
UserPostedImage
Cheers
Jean
thanks 2 users liked this useful post by JohnjeanB
Offline gamolina
#3 Posted : 03 February 2020 15:44:37(UTC)
gamolina

Argentina
Joined: 03/10/2012(UTC)
Posts: 54
Location: Buenos Aires
Many thanks Jean for your message!

I live in Argentine and to send the loko back to Germany it is not easy!
I shall try to do what you recomend.
Greetings
Guillermo
