Hello!

Some pictures to show the differences between members of the TRAXX family.

UserPostedImage
145 018 with destination board and 4 hand rails at the front (and an unknown sister loco)
Before class 146 was built, some locos of class 145 got destination boards and were allowed by special permission to drive 160 km/h (obviously this is one of them).

UserPostedImage

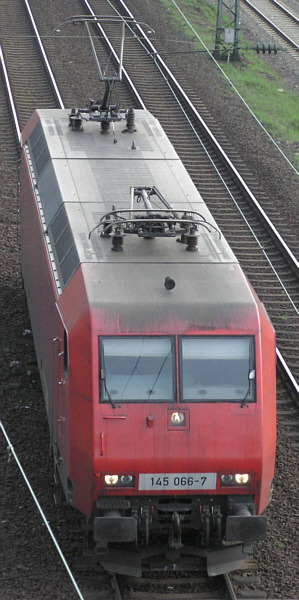

145 066 has 2 hand rails at the front and no destination board.
Swiss Re 481 have the same body.

UserPostedImage

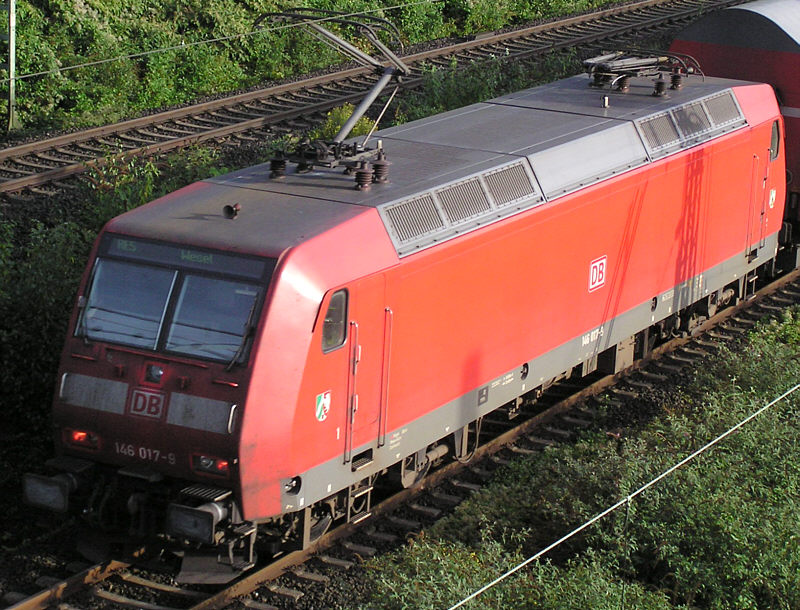

146 017 has a different destination board, but the same body as class 145; all class 146.0 locos have this body.

UserPostedImage

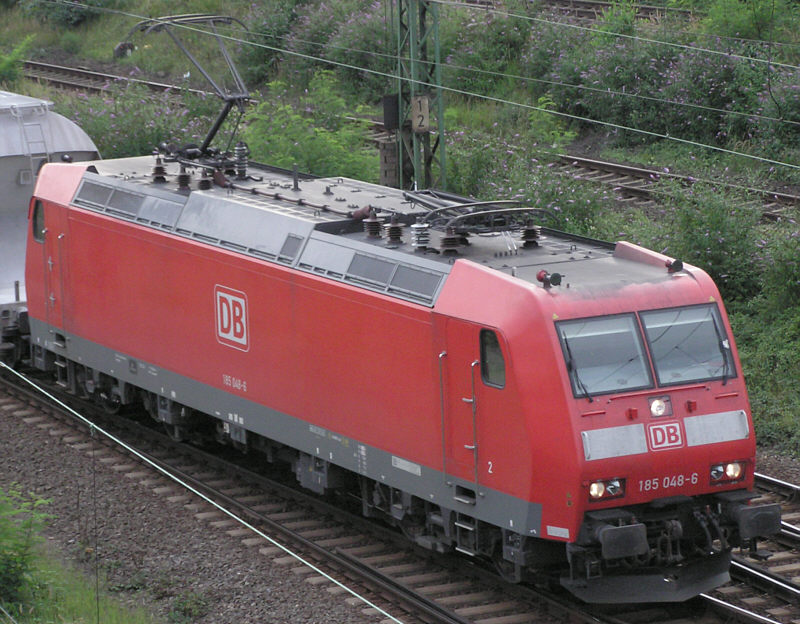

185 048 with two pantographs (class 146.1 has the same body as class 185.0); to allow international operation the roof is lower around the pantographs.

UserPostedImage

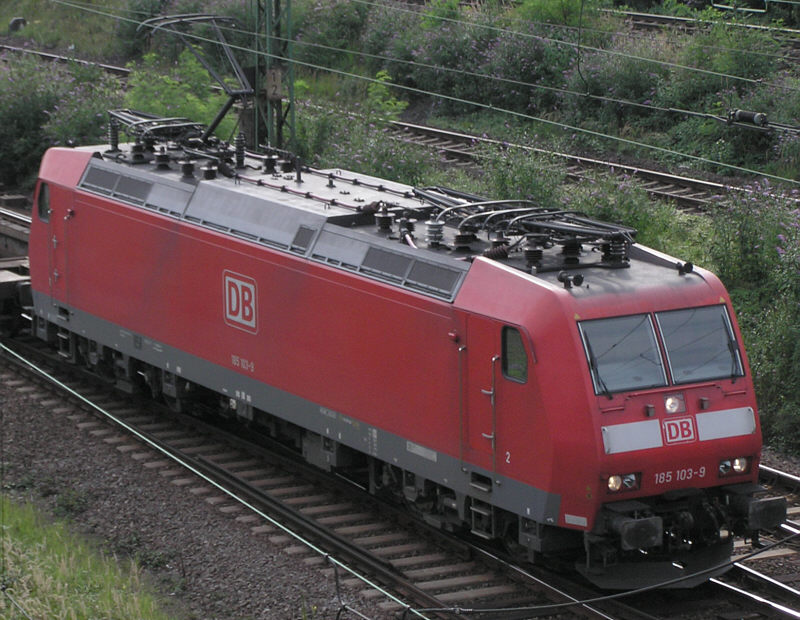

185 103 has four pantographs (the truck is also different because the loco has magnets for operation in Switzerland); it's like Re 482.

UserPostedImage

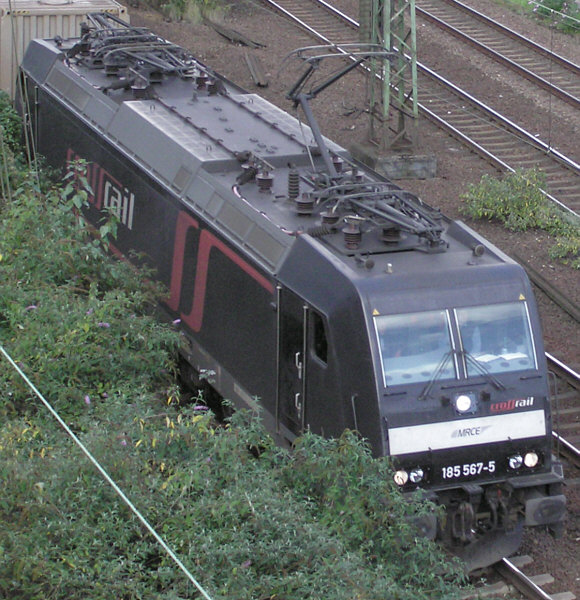

185 567 (like DB's class 185.2) looks slightly different: hand rails and wipers have been moved, the roof looks different, too.
The same body is used for class 146.2, too.
