Last weekend I picked up my set of drawings again and started another wagon. The ten members of this uilt by the Nederlandsche Rhijnspoorweg(NRS) in 1867. I couldn't resist the look of the brakeman's hut, so one had to be built.
Again, the wagon was capable of carrying 10 tons of coal. After the assets of the NRS were split over the SS and HSM just after the turn of the century these wagons ended up in the fleet of the SS.

As usual, the frame was built first, being glued onto the wagon floor
UserPostedImage
After the walls of the wagons were cut and the inside planks scribed, they were attached to the base. to the right is the space for the brakeman.
UserPostedImage
some framing was next up. These wagons had wood frames, which is why they are so thick.
UserPostedImage
On the other end the hinges and reinforcing for the swing door was attached, and reinforcing was also glued to the side doors. These wagons had doors that swing down, instead of the usual way of having the doors swing sideways. I have no idea why, it may be so that the wagon is easier to unload onto a cart.
UserPostedImage
This is the result of a saturday afternoon's modelling. Things have gone quite quickly as I had worked out how most of the details should look already, instead of spending time looking up pictures of simular wagons.
More will follow tomorrow.

Cheers,
Rick
Offline steventrain
#102 Posted : 27 January 2012 07:38:33(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 26,430
Location: Northern Ireland
Looking good, Rick.
Largest marklinist Layout with Centrail station 2/Mobile station 2/60174 boosters/C-Tracks/K-Tracks/Favorites class BR01, BR23, BR50/Insider Club membership since 2004.
Offline river6109
#103 Posted : 27 January 2012 10:39:39(UTC)
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 10,431
Location: On 1965 Märklin Boulevard just around from Roco Square
Rick,

Will follow this to end again.ThumpUp

John
http://www.youtube.com/river6109
http://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Offline kariosls37
#104 Posted : 28 January 2012 09:16:26(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Steven and John

Continuing on from the previous day, I started building the brakeman's shelter, or Checkpoint Charlie as I call it. I think you will see why. The hut is made from diffrent v-groove styrene to represent the diffrent type of planking. The insides were scribed as well as you can see the inside quite clearly
UserPostedImage
As you can see, it's not the most comfortable accomodation.
And from another angle;
UserPostedImage
To finish off the day's modelling I added the handbrake itself, and the nice curved roof. I also poured in some loose coal to see how it looks.
UserPostedImage

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#105 Posted : 29 January 2012 09:53:08(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
The next job was filing out and fitting the W irons. I used some blanks I made previously, so they only needed a little bit of tidying up. Pinpoint bearings were then soldered in. To make fitting axleboxes easier later on the bearings were filed as flat as possible. The W irons were then glued to the frames and wheels were fitted. The bearings, axles and wheels are the only things not produced in house.
And this is how it all looks on it's feet
UserPostedImage

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#106 Posted : 30 January 2012 09:54:22(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Following on from yesterday's post, the W irons were dressed up. Axleboxes are DIY cast resin ones, drilled and fitted onto the bearings. Springs are from my supply of pre-made details and the rest is styrene. Resin buffer shrouds were also fitted. I made the moulds for these while building the previous wagons. The origionals are part of another wagon.
UserPostedImage
The buffers themselves have also been built up, ready for turning to the right shape once the glue sets.

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#107 Posted : 31 January 2012 09:35:56(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Looking at the wagon, the left hand buffer is rounded, the right hand one is not. My buffers started life as 0.5mm styrene punched out with a sharpened brass tube. 1mm styrene rod was glued on for the shafts. Once the glue had set, I put them in my cordless drill and shaped two buffers into rounded ones with a file. These were then glued onto the wagon.
UserPostedImage
Signal brackets were also attached, sourced from my box of pre made parts. The lock for the door was also made up and attached.

The brakehouse is not only for decoration(although it looks cool), so the brakes were next up. Brake blocks were again pulled from my little box of parts, and wire brake rods and styrene hangers were attached to them. because I can, I modelled the brake rigging as well, again using styrene and brass wire.
UserPostedImage
Note the absence of air brake equipment, which was not deemed neccesary on these wagons. Once everything is bacck up the right way, this is the view you get.
UserPostedImage
That just leaves a few final few details to do, and then it's time again for some airbrushing.

Cheers,
Rick


PS. the person who thought that the backspace button is a good shortcut to "go back to the previous page" should be shot. I had to write this post twice because of thisCursing
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#108 Posted : 02 February 2012 07:49:20(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Following on from the last post, details were added. All the usual stuff, hand grabs, stirrup steps and the like. Having a brakeman's hut, one corner required a more elaborate step, the bottom two steps soldered from nickel silver strip and brass wire. The top step is styrene, and sits on one of the buffers.
UserPostedImage
UserPostedImage
And that leaves the wagon finished and ready for painting.

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#109 Posted : 07 February 2012 09:41:52(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
When the luggage trolley recieved it's primer coat, the wagon recieved a coat of grey. This weekend the underframe was done in black, and on the following days small details were touched up. The roof also got a sand colour. The area didn't warrant an airbrushing session, so it has been done by hand. This is the result, ready for a coat of varnish.
UserPostedImage
Between painting I have started an exiting new project, more will follow soon.

In the meantime, thanks for watching,
Rick
Offline kariosls37
#110 Posted : 10 February 2012 10:21:20(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
The next project is the NS 5301.
This is the loco in question, in the town of Assen in 1932.
UserPostedImage
Borrowed from Het Utrechts Archief
Because heavy main line engines are not seen on light local railways, and because the location of the photo fits into future layout plans, I had to get one of these kits. They were made 10 years ago, but a re-run and and a bit of fortune allowed me to secure one.
Two engines were built for the NRS by Sharp, Stewart & Co in 1880. Eight engines where then ordered by the Nederlandse Zuid-Ooster Spoorweg Maatschappij in two batches, in 1881 and 1882. My engine started life as the NZOS 1, Sharp, Stewart & Co maker's number 2951. A merger later and she became SS 267 before becoming NS 5301 after the SS and HSM merged to become the NS. The class of 10 engines were all scrapped between 1925 and 1935, which allows the engine to just fit into my modelling era.

This is what is inside the kit:
Etched 0.3mm brass;
UserPostedImage
The motor and some cast brass bits;
UserPostedImage
More brass bits;
UserPostedImage
And some other parts including pickup wipers and the plates;
UserPostedImage
Beautiful cast nickel silver wheels are also present, but the photo didn't turn out too flash, so they will appear later.

Last week I started building the kit, starting with soldering the frame together.
UserPostedImage
There's plenty of detail there, inside and out...
The frames are constructed in such a way that they are wider in the middle, allowing tighter curves to be negotiated.

More will follow soon.
Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#111 Posted : 11 February 2012 10:36:01(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
To the frames the first detail was added, in the shape of hornblocks. They exist to guide the axleboxes up and down to compensate for uneven track, In model form they do the same. They consist of two parts on the leading and trailing axles, and this is supplemented by four tiny gusset plates measuring less than 1mm for the driving wheels. Great detail, but those tiny gusset plates do shoot out of twezers real fast. Good thing there's a few extra on the etchCool
Also added were the springs for the rear axle, made up of three layers, resulting in a 0.9mm thick part. Operating rods for the drop grate were also added.
UserPostedImage
The internal motion, two sets of Stephenson's valvegear and two cranks and connecting rods were made up. This all fits in between the frames.Drool
UserPostedImage
Finally, on another subassembly, the air reservoir and the brake cylinder casting were attached. More detail that can only really be seen when the frame is at eye level.
UserPostedImage

This kit is not for beginners, as it takes a good understanding of how brass kits are constructed. However, with the required knowledge, this is a fun kit to build, and everything fits really nicely. To top it off, the frame of this has about the same level of detail you would expect a whole ready-made loco to haveDrool

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline steventrain
#112 Posted : 11 February 2012 11:11:33(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 26,430
Location: Northern Ireland
Excellent process, I like the wagon.ThumpUp
Largest marklinist Layout with Centrail station 2/Mobile station 2/60174 boosters/C-Tracks/K-Tracks/Favorites class BR01, BR23, BR50/Insider Club membership since 2004.
Offline mvd71
#113 Posted : 11 February 2012 20:22:16(UTC)
mvd71


Joined: 09/08/2008(UTC)
Posts: 888
Location: Auckland,
It will be three rail digital won't it Rick? BigGrin
Offline river6109
#114 Posted : 12 February 2012 00:47:41(UTC)
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 10,431
Location: On 1965 Märklin Boulevard just around from Roco Square
Im getting itchy, I may start doing it myself one day.
When you look at the detail and its all out of brass, this is a different ball game all together.
It's fun watching your process.

John
http://www.youtube.com/river6109
http://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Offline steventrain
#115 Posted : 12 February 2012 07:36:07(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 26,430
Location: Northern Ireland
Originally Posted by: kariosls37 Go to Quoted Post


UserPostedImage
The internal motion, two sets of Stephenson's valvegear and two cranks and connecting rods were made up. This all fits in between the frames.Drool

Thanks for watching,
Rick


Have you test on turnouts and 1st radius curved such as 24130?
Largest marklinist Layout with Centrail station 2/Mobile station 2/60174 boosters/C-Tracks/K-Tracks/Favorites class BR01, BR23, BR50/Insider Club membership since 2004.
Offline kariosls37
#116 Posted : 12 February 2012 10:22:53(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Mike, digital - definetely. Three rail - wait 'till you've seen the underside of this beautyWink

John, I'm glad you like it. From seeing your work, you would have no trouble building a brass kit provided you don't get too ambitious and start with something easy like a wagon. And from experience I can tell you that once you start, you will never want to stop...

Stephen, R1 is out of the question for this loco, and I have not bothered to test it. Brass kits are not designed for tight curves, as it would compromise too much on detail. Just compare the flanges of this loco(RP 25 code 80) to the pizza cutter flanges on Marklin models. However, it easily negotiates the #4 points on my Dutch layout, which is roughly R2, but for most brass models this is the absolute limit, if not impossible. This is a complete diffrent kettle of fish to ready to run Marklin models.

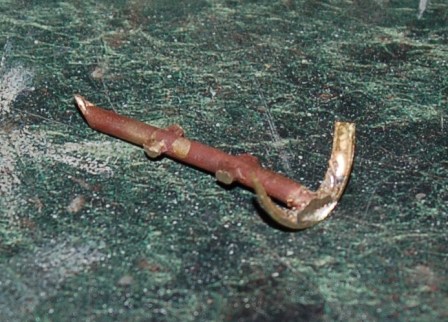

On the modelling front, the cylinder block was assembled, and cylinder covers were added before the motion was soldered in, followed by some piston rods. It was then time to solder the frames together.
UserPostedImage

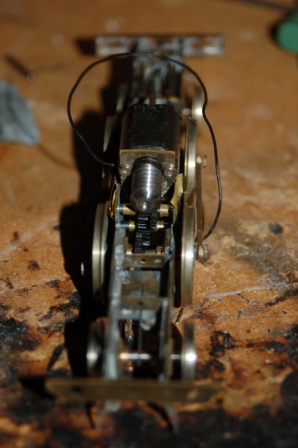

The kit provides for the front and rear axles to be sprung, using a bit of 0.35mm spring steel wire pushing on the middle of the axle. Both sets of driving wheels are stuck rigidly in the frame. I was not satisfied with this, as experience with the NS 3931 has proven that rigid chassis don't pull as much because on anything but dead level track there's only going to be three wheels on the track.
Putting a spring on the rear drivers was not an option, because the gears are on that axle. That just left one choice. Another bit of spring steel was soldered on the inside of a frame stay just behind the leading drivers. The wire is barely visible as it sits snugly between the two pairs of eccentrics for the valvegear. After a bit of work on the bearings on that axle, everything slides up and down nicely, and works as intended.
UserPostedImage
You can just see the spring between the eccentrics on the photo. This will make the model run realistically over bumps, instead of bouncing over them like any rigid frame locos like Marklin's steamers.

Thanks for watching,
Rick
Offline kariosls37
#117 Posted : 17 February 2012 04:41:04(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand

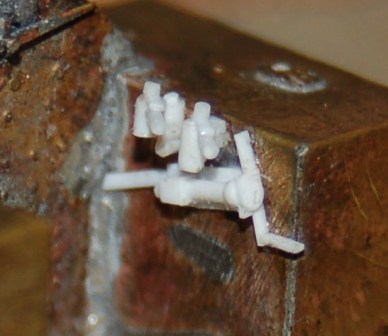

With the chassis done, it's time to mae a start with the top bits. th efirst thing were the front and rear walls, again rich in detail.
UserPostedImage
Next up is the boiler. This comes as a flat bit of etch, which is carefully rolled over a towel followed by some careful bending to get it round. A bit of filing to get it to the right diameter folowed by a touch of solder results in a nice round boiler and a tiny silver line visible on the underside
UserPostedImage
The barrel is then combined with the firebox and the front cab wall to form one part. The gap between the firebox and boiler barrel will later be filled with a polished brass casting once the painting is done.
UserPostedImage
And then my soldeing iron decided to stop working. This was on a Saturday evening(yes, I'm a little behind in posting stuff here) so instead of doing brass modelling, I grabbed my knife, some styrene and started building anothe coal wagon.
More will follow soon...

Rick
Offline kariosls37
#118 Posted : 23 February 2012 09:47:09(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
I've been busy over the last week, but here is the story of the next coal wagon. It will be the last 10 ton one for now, being built for the Noord-Brabant Duitsche Spoorweg Maatschappij (North Brabant-German Railway Co), NBDS for short. The class has the running numbers 35816-35846, built in 1873 by Werkspoor.

The usual method was followed, and this is the result of the weekend's modelling;
UserPostedImage
The basic body is complete and runnable, ready for detailing.

Buffers were also made up. These take two days to make, as the glue has to dry fully before continueing.
Discs of styrene are punched using a punch made from a brass tube. A short length of 1mm styrene rod is glued to this.
UserPostedImage
Once the glue is dry the shank of the buffer is held in the cordless drill, and using a file the burrs are taken off, and every second one is filed round, which is easy to do with a reasonably sharp file and the cordelss drill going. This method is pretty quick and easy to do. As buffers are another of those standard parts, more are made than will be needed, which speeds up the building of later wagons

That's all for now, more will follow soon.
Cheers,
Rick
Offline river6109
#119 Posted : 23 February 2012 13:19:31(UTC)
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 10,431
Location: On 1965 Märklin Boulevard just around from Roco Square
As usual, top stuff
http://www.youtube.com/river6109
http://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Offline Yumgui
#120 Posted : 23 February 2012 18:07:27(UTC)
Yumgui

United States
Joined: 20/03/2011(UTC)
Posts: 1,567
Location: Paris, France
Rick ThumpUp
If your M track is rusted ... DON'T throw it out !
Working on : http://www.arep.fr/en/#/welcome
Inspired by : http://www.nakedmarklin.com/ ... I am not alone in this universe, phew.
Offline kariosls37
#121 Posted : 24 February 2012 22:07:55(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks John and YumThumpUp

Monday saw further progress, which was mostly focused on adding all the running gear details. Springs and axleboxes came from my box of pre-made stuff. Spring hangers and the like were built to suit. Latches on the doors were also made. On this wagon the door tips down instead of swinging to the side, so that had to be taken into account as well. The buffers were then also installed, followed by latches for the end doors
UserPostedImage
Tuesday saw the rest of the details being added. some from my box of bits, and some made to suit, finishing the build of the wagon, done in just four days.
UserPostedImage
Some details on the end of the wagon;
UserPostedImage
Now that I have a new soldering iron, I will be able to continue with the locomotive, and progress will of course be posted here.

Thanks for watching,
Rick
Offline Mark5
#122 Posted : 25 February 2012 08:57:10(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Just discovered this thread. Thanks so much for continuing to post your little masterpieces.
Seriously, I love the work and its giving me loads of ideas. So much more I wish I had time to write about.

One thing I was unclear about, are these for use on a Marklin layout, with Marklin couplings, wheels and axels (width being a tiny bit wider, I understand)?

I have been thinking about taking other HO material/rolling stock/locos and Marklinizing them.
Thats another thread I guess.

Sorry if I missed this in your thread, but you got all the kits from the shop?
Anywhere they can be mail ordered from?

Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#123 Posted : 25 February 2012 20:14:12(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks MarkThumpUp

These are not built for running on a Marklin layout specifically, and as such do not have Marklin wheels or couplers. The rolling stock is mainly for running on my DC layout, Nieuweveenschekanaal, which can be found here
The wheels are RP 25 code 100, which is more or less the standard flange for all American models. It looks much better IMHO, but it will derail more easily. You could fit Marklin axles to the wagons, but their flanges are absolutely massive compared to the wheels I've got. Couplers are KADEE, which is quite popular among scratchbuilders because they are smaller than most European couplers, couple really gently and uncouple without visible uncouplers.
However, all of this does not preclude it's running on modern K track and C track provided the radius is not too tight(R2 is the absolute limit) and the track is laid well. I have run these wagons on the Auckland Marklin Club C track modular layout, with mixed results, but that was mainly due to not having proper couplers(the screw link type are not really suited to anything except very generous curves) The NS 3931 has also done laps of that layout without problems.

All the styrene stuff is scratchbuilt, and the only things I order in are the wheels, bearings, axles and couplers. The first three I get from North Yard the couplers come from the local hobby shop.
The brass kits come from small manufacturers, mostly run by one or two people part-time. The NS 3931 came from DJH, the brass wagons came from MK Modelbouwstudio's and the locomotive I'm building now is from Werps Modelbouw
The last two manufacturers do not sell to shops, only at some exhibitions in Holland and via mail order. North Yard is almost exclusively mail order and DJH is mail order as well as selling to a small few shops.

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline Mark5
#124 Posted : 27 February 2012 18:15:08(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Thanks so much for the info! I will tuck this into my "to do" file.

I would like to have a module on my set with Dutch landscape and trains from mostly Era 2 and 3.
But either way the thing I would really like is to kit or scratch build some cars and loks and have them able to run on a Marklin set.

Do you know anyone doing that?

- Mark

Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#125 Posted : 28 February 2012 02:46:07(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
No worries Mark.

The more the merrier I'd say, There is little in the way of ready to run rolling stock available from before the war, except for a few tank cars, the odd closed van and some modern(for that time) coal wagons. However, Artitec has just delivered many variants of the SS 700/NS 3700 4-6-0 express engine for era I-III plus the museum livery. and they have announced a few carriages and to go with it. A guard's van is also being delivered now. This is all mainstream and therefore Marklin compatible. The SS 700/NS 3700 is also available for 3-rail.

As for someone who is building this stuff for more adventurous track, this link takes you to the photobucket album of someone who builds NS rolling stock mostly from the frames of old wagons and locomotives, which will run on older track. Symoba sells NEM close coupling units, but KADEE's are just as good IMHO, and you can get NEM compatible KADEE's for any standard models too. On that album there is also a complete set of general arrangement drawings containing everyting with wheels that couldn't move itself the NS had in 1924, and a lot of older drwaings with more detail as well. This is where I get almost all of my drawings from.
These two liks are also from that person.
http://www.tkontjevandezalm.nl/index.php?page=1
http://s620.photobucket.com/albums/tt281/meukemmer_van_floortje/
The latter one is especially useful as it contains reasonably good artwork for number plates and it has some good photos on carriages too. At the moment I am drawing up more artwork in vector format as well so I can get someone to print them for me. The problem is I keep building more stuff, so I have to keep on drawing. The standard layout is the same for locomotives and rolling stock though, so it gets easier as I go along.
For all of this knowledge of Dutch is pretty important, but except for that the information is pretty available.
For photos Het Utrechts Archief is very useful, with thousands of good quality pictures from the NS archives.

Good luck,
Rick
thanks 1 user liked this great post by kariosls37
Offline Mark5
#126 Posted : 10 March 2012 21:46:47(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
I met a guy here in Montreal that builds brass locomotives and been wondering if you know anyone who has built them with Marklin engines?
Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#127 Posted : 15 March 2012 07:14:05(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
If you go back a page you will see that my first engine, the NS 3931 will run with other Marklin stuff. With a bit of cunning and a wagon carrying a slider the NS 5301 will also run on Marklin track.
As for people who have used Marklin engines as a base for building other engines, I only seen two examples, one where the Trix BR74 was chopped up to become a Indonesian tank loco. The other's on this forum where someone is modifying a former BR55 to match a Danish engine. However, I think there are some reasons why it is not done as often;
-Marklin is not as big as 2-rail, and as can be seen from this forum, the vast majority will not go much further than assembling Faller ect. kitsets, which I think is partly due to the fact that Marklin is more oriented around collecting than hands on modelling. Notable exceptions excluded of course!
-Cost and availability. People will not tend to chop up models that cost 400Euro to buy. A lot of cheap 2-rail donor engines are readily available, with the same or better detail than some of Marklin's models, unless you want to buy 1960's/70's old stuff, which is a bit of a waste of time when you are building a brass body around it.
-Detailing; For starters, Marklin makes models with huge flanges compared to brass standards and even many other European brands. Punched steel rods also look very crude compared to etched brass stuff. The most likely candidates
-Metal details are also a bit harder to chop up and adjust than plastic ones.

Now, I'll just go back into my trench and await the oncoming fire...BigGrin


However, there's nothing stopping you from chopping up Marklin models to get the loco you've always wanted. (oh yeah, the purists might, but that has never stopped meFlapper Flapper )The big advantage is that you have a well running chassis which means you only have to build the bits that look pretty.

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#128 Posted : 18 March 2012 08:10:41(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
No incoming fire so far, so I'll dare to stick my head above the trench nowBigGrin

The building part of this thread has been neglected a little bit lately. Since moving my workshop to somewhere else has not made it any easier to do soldering, the pace of the locomotive construction has slowed right down. However, I still spend the occasional evening on the project, and work is progressing.
As soon as I finished the coal wagon it was back to the locomotive. The sides consist of a sub frame that looks a bit like the inside of an aircraft wing, onto which the detailed sides sit.
UserPostedImage
The side sheets went on without too much of a fuss, but the coal bunker has curved corners, and the edges of both sheets have to line up with the rear sheet, which meets at the rear of the cab. It took me about a week of soldering and unsoldering before I was happy with my handiwork, but the time has paid off and it looks really good now.
UserPostedImage
and from the rear;
UserPostedImage
does my bunker look big in this?
Some strips on the cab were then soldered on, where the top of the cab would seperate to allow it to be lifted off. The plates were a later addition, so some rivets had to be carefully removed to allow the plates to fit nicely.
Details like handrail posts, washout plug plates and some appendages were also attached to the boiler. Unfortunately no photos as I can't get at the camera in my new workshopGlare

That's all for now, mor will follow soon.

Thanks for watching,
Rick
Offline Mark5
#129 Posted : 20 March 2012 02:49:46(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Looks Great Rick. I will watch the progression. I couldn't say if the bunker looks too big, since I don't know the prototype you are working from. (No expert on the history of loks, but learning)

I do agree with your comment on how Marklin seems centered on collecting rather than building models. Guys want the models to run the way they run, which is brilliantly, and why bother modeling if they are close to "perfection" anyway. ... I see that.

I wasn't actually thinking of breaking up the bodies, so much, although alterations seem like a pretty good idea, I was more interested in the possibility of making a great running engine that would still run brilliantly on Marklin track, even maybe/eventually with a digital decoder.

I don't mind if the flanges are big, that gives them stability on the Marklin track, but I love the whole feel of the brass engines when completed, and the idea of having a Marklin-compatible engine that is not made by Marklin. (BTW Can't stand the one's that are just shiny brass...they must be painted with some degree of 'realism' to me)

Aside from the Dutch trains (NS) (btw thanks for those links, been looking at them), I have also been thinking of some old Canadian steam engines and even some recent Canadian trains, that, as far as I know, do not have AC 3-rail "marklinized" versions.

Does anyone know of Canadian train models that run on Marklin, other then the few CN boxcars and the Northlander?

Either way, keep up with the posts. Even if you do/don't get "oncoming fire" no doubt people are reading your posts.

- Mark

Edited by user 20 March 2012 02:57:52(UTC)  | Reason: Not specified

Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#130 Posted : 21 March 2012 08:58:13(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Mark. Unfortunately I haven't been able to take too many photos of the detailing, but some will follow after another little break.

If you want to turn a donor engine into a Dutch model, you will probably run into problems pretty quick if you don't want to alter much of the loco. The way German engines are constructed is very diffrent from the way the Dutch did it, even down to the basic stuff like wheel arrangements. For example, most goods trains in Holland in era II were pulled by mostly six-coupled locos, while German goods trains were most often pulled by ten-coupled locos in the same period.
Many scratchbuilders use a donor chassis, strip usable details and discard the rest, sometimes the wheels as well, replacing them by others to get the right size.

Most other European mainstream models will be able to negotiate Marklin track without any problems, although some modern models may not like R1. The most difficult bit will usually be mounting a slider, which should not be hard provided there is room. Digital's no problem, brass models are no harder to install decoders into than any analog engine, although there is more metal around for making short circuits.

Brass is nice to have, although I have no problems in models made from styrene or resin or any other material. Whatever's right for the job is what counts for me. A good example is my wagons, which are quickly, easily and cheaply built out of styrene. However, the W-irons(the bits that hold the axleboxes and therefore wheels in place) are brass, because styrene is not strong enough. Brass bearings are used because they are readily available, cheap and a good bearing. I could make them out of say, styrene, but that would wear out quickly, not run as well and it would take me ages.

Old Canadian locos could be a bit harder, because of the more or less standard RP25 wheel with much smaller flanges than mainstream European stuff, which is what is on my wagons as well. They are generally not designed for tighter curves either, although 18" seems to be a more or less standard minimum for shorther engines which corresponds to R2. Rolling stock should not pose too many problems, even with the smaller flange because everything sits on bogies, which are quite forgiving to bad track(which is why they are so universal on that side of the Atlantic in the first place) Longer passenger carriages may have some problems with tight curves though. Couplers can be left in place, provided the trip pins don't snag on the third rail. The best way is to buy one or two and try them on Marklin track. You'll soon find out if they work or not. You will probably also be able to get wheelsets with larger flanges from somewhere as well if you look around.

Part of this is just theory based on what I've seen and read, but a big part of it is just giving it a go. I started out with some simple kitsets two years ago, and now I'm scratchbuilding rolling stock and building brass locos without problems, and once some wheels arrive, I will start on something more challenging than that... I could read books for weeks on end and learn the theory begind modelling, but I would learn a heap more by just building in that same week. So my best advice is, buy an easy, reasonably cheap wagon kitset, build it and build your skills up from there.

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline Mark5
#131 Posted : 22 March 2012 16:09:52(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Originally Posted by: kariosls37 Go to Quoted Post


[.....]

Part of this is just theory based on what I've seen and read, but a big part of it is just giving it a go. I started out with some simple kitsets two years ago, and now I'm scratchbuilding rolling stock and building brass locos without problems, and once some wheels arrive, I will start on something more challenging than that... I could read books for weeks on end and learn the theory begind modelling, but I would learn a heap more by just building in that same week. So my best advice is, buy an easy, reasonably cheap wagon kitset, build it and build your skills up from there.

Cheers,
Rick


Thanks Rick,

That is all great advice and great info. I have been a fair bit of reading and find myself just longing to get back to tinkering and getting my hands dirty.
Getting a wagon kit seems an ideal start. Then as far as "marklinizing" the wagon all I will worry about is the couplings and wheel flange.

More later, I have take it stride, I have plenty on my plate with just repairing and getting running several old Marklin loks at the moment.

Dank u wel!
Mark

Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#132 Posted : 23 March 2012 23:48:31(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Veel geluk Mark.

As mentioned before, it's time for another little break. This involves more styrene, in the form of another two coal wagons.
Like most others, the various Dutch railway companies started switching to heavier wagons after a while. The next step up from a wagon with a 10 ton capacity was a 15 ton capacity. These were given the classification GL and numbers in the 40000 range. The first is one from the series 41167-41176 built by the Nederlandsche Rhijnspoorweg Maatschappij(NRS) in their own workshops in 1887. The other wagon is from the larger series 41861-42159 built for the SS in 1901.

Both were started at the same time, being built when I didn't feel like picking up a soldering iron. All the usual methods were followed, resulting in the basic bodies:
First up is the NRS wagon. More or less a stretched out 10 ton wagon.
UserPostedImage
This wagon had me looking from the frame to the drawing and back a couple of times, because the thing is almost two metres longer than a 10t wagon, while the wheelbase was more or less the same, resluting in a lot of overhang on the ends which is not common on the little 10t wagons. I also managed to find a photo of this wagon, which makes the details a bit quicker to make.

The other wagon;
UserPostedImage
This one's a bit younger, and looks a bit sturdier and more modern as a result. It is a fair bit wider than the others as well as having removable sides, so instead of channels, the sides are held together by steel with a T-section, which was easily made from a bit of 1x0.25 mm and 0.5x0.25mm styrene. Having steel doors, rivet strips were made and glued, which the other wagon recieved as well. My rivet strips are made from 0.75x0.25mm styrene into which the rivets are punched with a scriber. It's a tedious job, but the results do pay off.

Both wagons have an almost identical running gear, being the more modern W1 type axlebox from my DIY resin castings and 15 ton springs, which are longer than 10 ton ones. W-irons are the more modern trapezium shaped ones found under most four wheeled goods wagons on your layouts. The only diffrence between the two wagons are the spring hangers, which are the HSM type on the older wagon, as the wagon became property of the HSM once the NRS was split up between the HSM and the SS. The SS wagon, of course has the SS type spring hanger.
Unfortunately you'll have to imagine this for now, as I didn't make any photos.

Details are next up, but that will be for another posting.

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline mvd71
#133 Posted : 24 March 2012 06:09:20(UTC)
mvd71


Joined: 09/08/2008(UTC)
Posts: 888
Location: Auckland,
nice to see the progress and a "whole" train last night Rick.BigGrin

Cheers...

Mike.
Offline kariosls37
#134 Posted : 26 March 2012 01:05:29(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Mike, I'll have it running in public, one day...
If I get that set off Steve at least I will have a complete prototypical train to run at shows, provided no-one gets creative and puts tight curves into the layout.
There were also two notable exceptions from that train though, as I forgot to take them.

On the wagon front, progress has continued. A good bit of work has been done on the NS 5301 has also been done, but that is for later.
Detailing was relatively easy, as I had a photo to work off, and I have a more detailed drawing of the other wagon. This eliminates hours of searching for simular wagons to build up a plausible guess as to how the wagons looked. Fortunately most details on these wagons were more or less standard, and the SS went on a widespread standardisation program in 1902 for it's older wagons, making my life a lot easier.
And this is how the dressed up wagons look:
First up the NRS wagon
UserPostedImage
And a view of the end
UserPostedImage
Looking at the door details, and the suspension. These W irons are a lot easier and quicker to make than the open ones. Note how the springs are a bit longer for these heavier wagons.
UserPostedImage
And the younger SS wagon
UserPostedImage
The end again
UserPostedImage
Something that hasn't recieved much attention, although all the wagons have it; interior planking
UserPostedImage
Now it's off to the paint shops again...

Cheers,
Rick
Offline Mark5
#135 Posted : 26 March 2012 18:45:06(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Great interlude into resin. Just wondering, before I try my own, if you have any advice on how to "glue" resin molded pieces together.
Because of course resin melts too.

- Mark
Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#136 Posted : 27 March 2012 02:34:18(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
With glue of courseBigGrin

Seriously though, I use superglue. Not from the hobby shop, just one that's cheap but still good (I have found a brand that should be avoided at all cost) from the local equivalent of Wall-Mart. If 5 want extra strength or longer working time I will use a 2-part epoxy glue, but I haven't had the need to use it on a wagon kitset yet. Plastic glue won't work because it is a completely diffrent material.

By the way, resin kitsets are made from a two-part polymer which is made by mixing two components together which react to form a solid at room temperature. I do my own resin castings, but that will be the subject of a future posting. The only way you will melt them is by trying to solder the pieces together. The stuff does soften in boiling water though, which is very useful when un-warping bits.

Good luck
Rick
Offline kariosls37
#137 Posted : 29 March 2012 00:54:45(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
After the intermission, we're back to the main programme.

With the top of the locomotive out of the way, it was time to tackle some of the smaller parts. First up was the backhead. This is the back sheet of the boiler, which has the firehole in it and which intrudes into the cab. On these engines the tanks are built around the boiler, and curl around the backhead a bit. In model form the tanks are a simple box, onto which the backhead is soldered. The top part of the boiler is then curved to suit, followed by more soldering. There are a few brass castings which will decorate the backhead, like injectors, the main mitre, gauges and more. The only parts that were added at ths stage were the firehole door and the regulator, both of which are brass etchings.
UserPostedImage

The footplate was then tackled. The actual footplate itself consists of a bottom layer, which takes care of the strength and the flange on the bottom, plus a top sheet which has more rivets. These sheets are tricky to line up, but once they are, they certainly look the part. The smokebox was then built up using some cleverly designed formers over which another sheet with rivets was soldered. The formers and ends are designed in such a way that the joins dissapear once all the layers are attached. Thumbs up for the designer of this kitThumpUp The rear of the smokebox also has a slot and a hole into which the pin and the screw of the boiler fit, making assembly easy after painting. The smokebox door is only attached after final assembly, so that the screw in the boiler can be reached. Other details like steps(with more rivet strips!) and brass castings were added, including the chimmney, which was quite tricky to solder as it takes a lot of heating and aligning. The result;
UserPostedImage

Finally, the brake rigging was built up. Modifications during service turned a reasonably standard brake rigging into something that looks a bit more involved. The actuating cranks from the handbrake and air brake were also added, and are complete with the slotted link to allow the brake cylinder to apply the brakes while the handbrake is off and vice versa.
UserPostedImage
The pictures aren't that flash, done at night with what I had at hand, but you get the idea.

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#138 Posted : 04 April 2012 08:35:34(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Work continues to go at a steady pace.
The next thing to do was the roof. This stays removable, and consists of two layers. The second layer was added by the NS for extra ventilation. A bit of careful bending and soldering later and this is the result
UserPostedImage
It's still missing it's whistle, but that will come later.

The extension to the coal bunker and the water hatch were also built up and fitted. The coal bunker extension was fitted to many tank engines in the twenties and thirties to extend the operating range of those engines. It went together without a problem, and the bunker hatch can open and shut too.
UserPostedImage

It was then time to add a few castings to the engine. The safety valve cover and the steam dome were polished brass in real life, and will be added after painting. The dome still needs a bit more attention with some fine sandpaper to remove some pitting on the casting. This is easily done with the bit of screw thread that is cast onto the bottom of the dome held in the cordless drill, and using the sandpaper while the chuck is rotating. The theraded bit of the dome will also become very handy in the final assembly of the loco.
The result looks suspiciously much like a steam engine
The nose
UserPostedImage
And from the side
UserPostedImage
Note that the housing is not actually screwed down onto the footplate or chassis, hence the gap.
What follows is a slower process of checking and adding details. Like most steam engines in the world, no two were exactly the same, and this is especially true for these engines because two companies origionally ordered these engines from Sharp, Stewart a few years apart, leading to diffrences right from the start.
The matter is further complicated by the fact that two years after ordering, I still don't have all the parts, including some of the gears, which are very important for testingCursing

Cheers,
Rick
Offline Mark5
#139 Posted : 09 April 2012 23:56:18(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Looks brilliant! Thanks for posting!
I am eager to see a video of the whole train up and running....
Enjoy... and hope you find the gears.

And of course you ARE going to adapt this for 3 rail in with a slider and such in one of the car or its loads right?

BTW What was your source for all the history bit by bit... like finding out that NS added the extra roofing for ventilation??
- Mark
Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#140 Posted : 11 April 2012 05:26:10(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks again Mark

The 3-rail bit will be an afterthought, the most important thing is to get it running nicely in 2-rail, because that's what it will do for most of it's life. It will be done though, as I cannot run the engine for more that 2.5 metres on my layout.

The history comes from what I've picked up here and there. The makers of kits will have to do a substantial bit of research into the real thing in order to make an accurate model. They will often provide a page of info on the life of the class. The rest is general knowlede about the various railway companies and their habits. For example, the NBDS had a tendency to buy the same locomotive designs and wagons as the SS , like the later NS 1300, which was a SS design. Carefully observing photos and the like is part of it too. The holes in the NS 5300's cab roof can also be found on the NS 8700 and 6200, both of which were built for the NS in the twenties. Each company's CME (chief mechanical engineer) has his own tastes and preferences, which show up in locomotive design.
The only book I have on Dutch steam, "Vervlogen Stoom" (very good book, it gives a good insight into how the NS finctioned in the prewar years) has a chapter on various altertions which is valuable as well.

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#141 Posted : 15 April 2012 08:42:12(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Detailing is a slow process, but there is some progress. First up a few more handrails were added so the fireman can get to the coal a little easier. The handrails are 0.45mm nickel silver instead of the usual brass. Nickel silver looks a bit like the polished steel used for the handrails in real life, so I don't have to mess around with paint to make it look like steel. A whistle was also turned up from some brass wire using my cordless drill and a file, as I couldn't be stuffed waiting for the cast one to arrive.
UserPostedImage

The front end got some attention as well. The smokebox door is a flat etch, but it has to be made dome-shaped to look like the prototype. Hunting around the house for something to make the dome shape with, I settled for the rounded top of a pepper grinder, and with the door lying on a sock, the door was carefully formed to the right shape. No need for any expensive toolsCool The smokebox door was then decorated with hinges, another handgrab and the locking mechanism. This is another DIY part, because I thought I could do better than the provided one. A bit of brass wire was shaped up in the cordless drill, small pilot holes were drilled for the levers which were reamed out and nickel silver wire was soldered in and cut to length. Only then was the whole assembly cut loose from it's "sprue" and attached. Against all expextations, the first go proved to be good enough to pass muster.
The smokebox is still a loose part, ready for final assembly. For now, it is held in place with some strategically placed blu-tackCool

Another set of parts that will only be attached after painting are the buffer beams. This allows the buffer beams to be painted red with minimal masking. The base for both ends is another etch, onto which cast brass air hoses and steam-heat connections for the carriages are attached. Buffers should also be attached to this plate, but because the provided ones are the wrong type, I will make my own casings as soon as I can raid the local hobby shop for some more brass tube. The cast brass couplers were also made up. A clever assembly requiring no solder, these things can be used to couple rolling stock, but because they are so fiddly to use I will mount Kadees, and keep these couplers for running consists at shows. Again, blu-tack holds these parts to the engine
UserPostedImage

Because I occasionally work with real steam engines as well, I see missed details that other modellers may not see. Two glaring ommisions to me in the cab were the reversing lever and the air brakes for engine and train. The air brakes will be added after painting, but I guessed the shape for the reverser and made it from leftover etched bits. The result looks something like this:
UserPostedImage

Thanks for watching,
Rick
thanks 2 users liked this great post by kariosls37
Mark5mj
Offline steventrain
#142 Posted : 15 April 2012 09:07:13(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 26,430
Location: Northern Ireland
Looking good process, Keep posted.Smile

I am very different to do metal/brass kit.Bored
Largest marklinist Layout with Centrail station 2/Mobile station 2/60174 boosters/C-Tracks/K-Tracks/Favorites class BR01, BR23, BR50/Insider Club membership since 2004.
Offline kariosls37
#143 Posted : 16 April 2012 20:39:14(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Steven

Offline kariosls37
#144 Posted : 26 April 2012 05:01:23(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Because of the lack of parts, I have stopped working on the NS 5301 for now. There are still some bits that I can do, but I will leave that until I get more parts.

In the meantime, I've finished(sort of, no couplers or decals yet as per usualRollEyes) some stuff and started something new.

First the "finished" stuff:
I got around to painting the three coal wagons this weekend, nothing unusual except for the varnish being slightly unwilling to co-operate, but I won that fightCool
First up the last 10 ton wagon:
UserPostedImage
UserPostedImage

Next up is the medium weight category. On the left we have the older NRS wagon, and on the other side the considerably wider SS wagon.
UserPostedImage
The NRS wagon from the side:
UserPostedImage
And the SS wagon also posing for the camera.
UserPostedImage

The new project on the workbench are the last two coal wagons that I will build for now. Again, we ave moved up a category, and are now in the heavyweights amongst the coal wagons, with 20 or 21.5 ton capacity. These were built from 1901 onwards in much larger quantities than before.

The two I am building are the 53301-53440, built by the HSM in 1901, with 140 in the class. The other wagon comes fron the SS and is a fair bit younger, being built by varous companies fron 1914 to 1921, the class of 950 recieved the numbers 57001-57950.

A link to the drawings:
NS 53301-53440
NS 57001-57950


The same old process was followed, with the diffrence that the ends of the underframes were made out of 3.2mm channel, which fits nicely over the 2.5mm channel used for the solebars. The use of steel channel was introduced on more modern wagons, a result of the continual increase of the weight of trains being hauled. This wagon also has a brakeman's hut, which will sit on the extension of the frame.
UserPostedImage
The trickiest part of this wagon was the doors, which have been pressed into a flat pyramid shape for extra strength. This was mimiced by scoring grooves in the backs of the doors with a hobby knife, getting deeper in the middle. The result is not very visible in white styrene, but that will change after painting.

The other wagon was a case of more of the same;
UserPostedImage

Cheers,
Rick

Edited by user 26 April 2012 05:43:54(UTC)  | Reason: Not specified

thanks 1 user liked this great post by kariosls37
Offline nelsonajm
#145 Posted : 29 April 2012 20:35:22(UTC)
nelsonajm

Portugal
Joined: 10/02/2012(UTC)
Posts: 30
Location: Samora Correia, Portugal
what a wonderful work.... congratulations.

Nelson.
Marklin and TRIX fan... from Portugal...
Offline kariosls37
#146 Posted : 30 April 2012 10:22:25(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Nelson
Offline Mark5
#147 Posted : 30 April 2012 17:39:54(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Looking good.
Nice to see the to scale worker enjoying a drink along with you.

BTW
Where do you get the decals?
Do you airbrush or paintbrush on the colour?
- Mark
Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline steventrain
#148 Posted : 30 April 2012 19:34:25(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 26,430
Location: Northern Ireland
Look great.ThumpUp
Largest marklinist Layout with Centrail station 2/Mobile station 2/60174 boosters/C-Tracks/K-Tracks/Favorites class BR01, BR23, BR50/Insider Club membership since 2004.
Offline kariosls37
#149 Posted : 01 May 2012 08:30:05(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Mark and Steven.

That worker is a troublesome one actually, he's the workshops foreman but I never see him doing anything else but drink....

I use an airbrush to do most of my painting, but touch ups are done by hand because it is quicker and just as good for small details. using an airbrush gives a way better result than an paintbrush and the coat is nice and thin so you don't lose any detail.

I draw up my own decals on a program called Inkscape. I have the appropriate fonts for rolling stock and locomotives, and the symbols are drawn up pretty easily as well. It has a built in trace function which is very useful for making builder's plates and the like. The only downside is that the program is not very good at drawing shapes to given dimensions like the CAD programs I sometimes work with are. I have thought of a way around that, although I have not got around to doing it yet.

My intention is to get the decals printed by a club member who has an ALPS printer(which can print white unlike most others). The problem is that it is broken. Another member has offered to fix it for him, but nothing has happend yet...(if your'e reading this Steve, pleaseLove)


Something has happend in the workshops as well(besides drinking beerBigGrin )
It mostly consists of adding rivet strips to the doors, and filling up some empty space on the youngest wagon with a brakeman's hut.
UserPostedImage
The brakeman's hut in detail.
UserPostedImage
And the HSM wagon
UserPostedImage
As you have probably noticed by now, the next step will be adding some wheels, but that is still in the future.

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline Mark5
#150 Posted : 02 May 2012 19:21:58(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Great info... I am hoping to get an airbrush kit when I am ready for it.
Thin coats and detail was exactly what I was thinking about.

BTW I know the dutch workmen in general would be proud to see how straightly you applied the rivet strips.
But not sure its enough to stop the foreman from drinking.
Have to put him to work on the rails, instead of letting the boys do it all
.... might have to wait for the composite video to see that.
- Mark


Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#151 Posted : 07 May 2012 02:23:52(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Mark

It's probably best that he's left in a supervising role, he does less damage thereBigGrin

Despite the foreman, a lot has happened at the workshops.
First the W irons were cleaned up and fitted
UserPostedImage
Then followed the details. I had made a few pictures of a very simular wagon in the Dutch Railway Museum a few years back for reference, and these were used as a basis for detailing, the rest was done via the usual guesswork.
UserPostedImage
The brakeman's hut didn't pose any problems either. The roof is still loose, and won't be fitted untill after painting. The handrails on the end were a bit tricky, and were built from a bit of 0.75x0.25mm styrene that had the bent and drilled. Two bits of 0.5x0.25mm styrene formed the other flange of the angle iron, and brass handrails were attached once the glue had set overnight. The filler on the cover of the handbrake is evidence that I don't always get it right the firs time, I had made it completely round, but then I found a drawing that showed these wagons had a round side and a flat side, meaning I had to make some adjustments...
UserPostedImage

The HSM wagon has also been finished. More of the usual really.
UserPostedImage
UserPostedImage
That rounds off the construction phase of the set of coal wagons, painting and decalling are all that's left, and of course a load of coal, 123 scale tonnes of it!

Thanks for watching,
Rick
Offline borntman
#152 Posted : 11 May 2012 23:13:12(UTC)
borntman


Joined: 24/01/2010(UTC)
Posts: 101
Location: Gloversville NY
I noticed in model railroader that they used shaped resin blocks with washers inside them to make the coal loads. These were than painted black and had real coal (as if there is any other kind) placed on top. The washers were for easy removal by a magnet.
Offline kariosls37
#153 Posted : 23 May 2012 10:40:11(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Borntman. I came across that article as well. It would be suitable if you have a lot of wagons of the same type, which is what I was trying to avoid. The washer trick is interesting though. I have heard of concealed wires as well to hook the loads out as well. I will see how it goes, I might use it if I can find some old bits of iron.

I can't sit still for long, and it has already been some time since I printed the drawings out, so it's high time I made a start.
My layout won't be complete without a train or two of regional railway carriages(Lokaalspoorrijtuigen). These carriages were not as heavily built as mainline carriages because of the low speeds involved(60km/h max in the thirties). Like the coal wagons, I will build a batch of them which will save me time in the long run.

With a bit of research I was able to determine what ran in my area and era. Trains were short, usually consisting of an engine, guard's van, second class carriage and a third class carriage. Occasionally another third class carriage was attached, and some services had the guard's van replaced by a comined postal-guard's van.

The first carriage to be built is a guard's van from the series D 4101 - 4145. like all vans that ran these services, they were actually mainline vans demoted to regional service. They were almost exact copies of vans built for the Prussian State Railways, except for the door on the blind end, which was addes at the SS's request, who took delivery of the vans in 1895 and 1900. Fleischmann makes a model of the Prussian van, which can be converted using a simple upgrade set.
I coudn't be stuffed finding one on Ebay, so I am just going to build it myself. This way all my carriages look the same as well.

Drawings came from the usual source:
http://s52.photobucket.com/albums/g15/emmer_van_floortje/NS%20materieelboek%201924/Hoofdspoormaterieel/D%20bagagewagens/?action=view&current=20080110093003407_0005.jpg

The usual start was made on the underframe. I knew the chassiss was going to be tricky, with 3 axles to go around curves. With the track on my layout being amost at eye height, I wanted all wheels to be on the rails at all times too, which didn't make the chassis any easier to build. I have come up with a straightforward solution though, here it is:
UserPostedImage
The left axle is attached so it can rock, but is otherwise fixed to centre the carriage on the track. The centre axle is fixed at two points, but can slide about 3mm from side to side in curves. The wheels have also been made a bit thinner to give extra sideplay. So far this is just a basic 3-point compensated chassis as I have showed here before.
Then we have the last axle. For starters, it can rock like the left axle. However, instead of being fixed to the chassis, it is attached to a bit of spring steel, allowing it to move up and down to stay on the track, and to allow the other two axles to do the same. It is also fixed in a way that only allows the spring to move up and down so that end of the carriage will also stay centred on the track. This axle does not really support the carriage as such, but simply matches whatever the other two axles decide to do.

To my relief, the carriage does go thouth the tightest curves on my layout, and it can just manage an R2 curveCool

The body soon followed, being built from 0.5mm styrene. Strips are starting to dress up the body too:
UserPostedImage

Because 0.5mm styrene is a bit flimsy, the inside has been reinforced with 1mm thick styrene, and the side doors are made from the same material
UserPostedImage

Thanks for watching,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#154 Posted : 04 June 2012 22:16:34(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
It's taken a while, but I have finally managed to paint and varnish the last two coal wagons.
The painting was more of the usual, and went fautless. The varnish was a diffrent story however. My jar of Humbrol 135 had gone thick, and it was a struggle to paint one wagon, so I gave up after doing the HSM wagon. I have had this problem more often, of Humbrol varnishes(but not paint)
going thick after a while. Has anyone else had this problem?
The varnish, once dried turned out to be very matte, more than it is usually, but it still looks good as it looks like a wagon that's due for a service and repaint
UserPostedImage
The next thing I tried was a can of Tamiya varnish I had from ages back, which turned out to be empty. This weekend, armed with a new jar of Humbrol 135, I fired up the airbrush once more. I intently didn't stir all the thick stuff on the bottom of the jar through the varnish, as this is what makes it more matt. The net result is a wagon that's shinier than usual, like a wagon that has just been repainted.
UserPostedImage
After varnishing, glass was fitted to the inside of the windows with a bit of Krystal Klear and the roof was painted with some Humbrol 94 to resemble the older sand-coated roofs, after which the roof was glued on.

With all 9 coal wagons built, it was time to take them all outside for a photo. Unfortunately the track was too short to add an engine, so you will have to imagine that for now. In the meantime, here is an authentic 1930's train of empties making it's way back to the coal mines in Limburg on a sunny winter's day
UserPostedImage

Thanks for watcing,
Rick
thanks 1 user liked this great post by kariosls37
Offline Mark5
#155 Posted : 08 June 2012 05:07:53(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Wonderful to see them all together Rick!
Thanks for posting these photos. ...

Would love to see a photo or video of the train with locomotive in transit.
Will you be running these on a club set or elsewhere?

Also, do you have decals or will you make some to put on the coal cars?

- Mark
Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#156 Posted : 08 June 2012 22:45:03(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Mark,

I may see if I can get the whole lot outside for a photo on a good day.
Running is a bit of an issue at the moment, I have ordered a whole lot of couplers for them a while ago, but so far only one set has arrived at the hobby shop. Currently I have 2 coal wagons that can be coupled. A few other wagons now have couplers too, plus the van. I am in the process of chopping up some couplers for the stake car at the moment, as it needs special treatment...

As the NS 3931 is very picky about it's curves, I can only run it on my own DC layout and the club's modular layout, which is only set up at shows, and even then there's usually some bugger that wants to be creative and sets up something with an R1 or R2 curve in it... The NS 3931 has done some laps on it thoughThumpUp
However, I may give running the wagons a go next club meet time as they are mostly 4-wheelers, plus some substitute motive power.

As for decals, read back a littleWink

Cheers,
Rick
Offline kariosls37
#157 Posted : 13 June 2012 03:50:07(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
And now we go back to the van.

Work continued on the underframe details of the van. The construction method is pretty much the same as the coal wagons, only the spring length has changed a little. The axleboxes are the same standard SS type as used under wagons, so some more resin castings were made. I have only mentioned the process so far, so I thought I would show how I make my resin castings in more detail.

Resin casting is usually associated with expensive, specialised materials and processes, but my method uses cheaper, off the shelf bits that are low-tech and simple to use with a little care.
To start with, we need a mould. For these axleboxes I glued the backs to a sheet of plastic. This plastic sheet will form the flat top of the mould once it is finished. With the masters ready, I can start the mould by carefully applying a thin layer of rubber over the masters and the base. The rubber I use is Woodlands Scenics latex rubber, which I bought ages ago and it is nowhere near empty. The initial coat of rubber is left to dry, after which more layers are built up with drying time in between until a sturdy mould has been formed. Only then are the masters and base removed.
Unfortunately I have no pictures of this, as I haven't made any moulds recently.

Next up is the casting itself. First up, the moulds are coated in a thin layer of Vaseline. This will prevent the mould from sticking to the casting. I use an old paintbrush for this. Don't be stingy, a little more will cause much less harm than not enough.
The resin I use is ordinary fibreglass resin from the hardware store. It is measured and mixed according to the instructions. Because most of my castings are tiny my measuring is done by counting droplets of the components.
With the resin mixed, I first use a little bit of wire to get a drop of resin in the mould which is used to coat the surface of the mould. This prevents air bubbles sticking to the mould. The mould is then filled gently and slowly from one corner to reduce the number of air bubbles that form. Any bubbles that do form are fished out, and the mould is topped up if needed.
Once cured overnight, the castings are removed and cleaned up, ready to use.
UserPostedImage
The main players of the casting process. In the foreground is the full axlebox mould, to the right is a bit of wire for mixing and the lid I do my mixing in, and behind it the two parts of the resin.

And here are the axleboxes(and some other stuff) attached to the underframe.
UserPostedImage
Details were also added to the underframe, in the form of some brake gear and a gas cylinder.
UserPostedImage
That's all for now, more will follow later

Cheers,
Rick
Offline kariosls37
#158 Posted : 10 July 2012 11:14:46(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
I've been making some good progress on the van.
The underframe was first to be finished. It got some drawgear, identical to the stuff fitted too the goods wagons. Next up a little jig was made up to bend the supports for the running boards. These have to be fairly good, because errors will result in a wavy running board. The supports themselves were bent from brass wire and were inserted into holes in the solebars. The styrene running board was then superglued onto it. The result is not quite straight, but I am satisfied with it.

Above the frames, the most significant addition is the roof, which was bent and glued on. The roof on the lookout was also modified a bit using some styrene strip and filler to improve it's shape. Vents for the gas lights were turned up on the cordless drill using some old sprue. The andrails also recieved a fair bit of attention. The real van had elegant curved dandrails, which were tricky to make, but using a bit of brass rod it was not too hard. The horizontal handrails were a bit easier, although the supports were made out of small bits of styrene shaped to match the real thing. They are tiny, but by putting them on a bit of wire 8 at a time it was not that hard to get them uniform.
UserPostedImage
The handrails on the balcony end had me stumped for a while, as I couldn't figure out how to make sturdy end handrails out of the available materials, until I read of someone making details out of staples. So the stapler was raided, and it din't take long before some nice handrails were present on the balcony end.
UserPostedImage
The blind end is a little less detailed, with it just having a gagway support, gangway, a door and more of those nice handrails.
UserPostedImage
That's the cosmetics pretty much done.

These trains will also have to run at night, and the Guard can't do his paperwork in the dark so some form of lighting had to be fitted.
Three warm white LED's on the roof of the van are connected via a bridge rectifier to phosphor bronze wipers on the outer wheels. A capacitor is also wired in to make up for bad contact. Right now, the van looks like this when the power is on:
UserPostedImage
A tad bit bright maybe...BigGrin
I still have to play around with the resistors to give it a more realistic gas light appearance.

I will wait a bit with painting until I have some more stuff than needs to be painted in the same colours, more on that soon.

Thanks for watching,
Rick
Offline NZMarklinist
#159 Posted : 11 July 2012 11:41:29(UTC)
NZMarklinist


Joined: 15/03/2011(UTC)
Posts: 1,254
Location: Auckland NZ
Very good Rick ThumpUp BigGrin

"then there's usually some bugger that wants to be creative and sets up something with an R1 or R2 curve in it... "

Jeez Rick, someone has a lot to answer for Wink LOL I'm not a fan of that module either ThumbDown
Glen
Auckland NZ

" Every Marklin layout needs a V200, a Railbus and a Banana car", not to mention a few Black and red Steamers, oh and the odd Elok !

CS1 Reloaded, Touch Cab, C Track Modules, K track layout all under construction. Currently Insider
Offline kariosls37
#160 Posted : 16 July 2012 21:44:02(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Glen.

And on the subject of things that don't go through R1, I have started work on the NS 5301 again.

The project had stalled a while back mainly because I was waiting on a few crucial parts to arrive. These include screws to screw everyting together, a gear and a matching worm. Without these I cannot run the engine, and because the engine will be running on DC layouts, the engine must be a good runner and not have any sorts. While the kit looks well made, you really don't know how it runs until you actually get it going.

The screws could easily be ordered in from North Yard, a reliable local supplier. However, the gears had me stuck for a while, until I had a clever moment and measured up the gears I did have. Luck was on my side that day, the 0.4 module gears supplied were a patch to the ones North Yard stocksCool Once they arrived, work could start again.

Some 2mm shafts were found in the parts box and round to length, bushes were made up and the gearing was fitted for the first time. The first gear after the worm is in a bit of an odd position, because the North Yard worm is a bit bigger than what the gearbox was designed for, but it works.
UserPostedImage
As you can see, the motor has also been wired up, and the engine has now done a bit of running, and everything runs very well.

Next up on the jobs list was the brass ring between the firebox and the boiler. The firebox is an old design, with most modern fireboxes having the same height and width at the centreline as the boiler barrel. This transition from the firebox to the boiler barrel was of course done with a brass cover.
The brass casting was not present in my kit. Instead, I cut some brass tube of the right radius to length, halved it lengthwise and then carefully bent it round. I then had to halve it again. This time I used a file to do the work. holding such a thing is quite tricky, but I soldered it to some leftover brass sprue like so:
UserPostedImage
I could then hold the ring in the vice, where the ring could be filed to size.

I had in the meantime also come across a drawing on the net, amongst other things, it showed the screw reverset in the cab. A few posts back cou can see the lever reverser I guessed these engines had. This was removed, and using styrene the body of the reverser was made up. The handwheel was also made from nickel silver wire, which will be fitted later. As I was putting styrene on the cab anyway, I made up some brake taps as well. The front one is for the brakes on the engine only, the other applies the brakes on the whole train.
UserPostedImage

Going back outside, some missing parts were turned up. Suprisingly, handrail knobs were quite easy to make from brass wire turned to shape in the cordless drill. Lids for the sandboxes were also made up in a simular fashion. The brass nails the instructions tell you to use were not present, and looking at photos I could see they left room for improvement, which I did.
Some other details were also made up, and handrails were temporarily fitted. These are nickel silver and will be attached after painting
The engine now looks like this;
UserPostedImage
UserPostedImage

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline NZMarklinist
#161 Posted : 17 July 2012 14:58:12(UTC)
NZMarklinist


Joined: 15/03/2011(UTC)
Posts: 1,254
Location: Auckland NZ
Good on you Rick for perservering, and finding the materials to complete the model to your high standards. ThumpUp

Hope it goes as good as it should look Wink
Glen
Auckland NZ

" Every Marklin layout needs a V200, a Railbus and a Banana car", not to mention a few Black and red Steamers, oh and the odd Elok !

CS1 Reloaded, Touch Cab, C Track Modules, K track layout all under construction. Currently Insider
Offline Ian555
#162 Posted : 17 July 2012 16:17:19(UTC)
Ian555

Scotland
Joined: 04/06/2009(UTC)
Posts: 18,171
Location: Scotland
Hi Rick,

Wonderful work. ThumpUp

Ian.

Offline kariosls37
#163 Posted : 19 July 2012 10:31:22(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Ian and Glen.

Motivation was not really a problem for me, Having it sitting on the layout part-built was enough to keep the mind ticking over on what to do for those final missing parts.

The loco runs very nicely now after a few tweaks here and there, especially keeping in mind that everything is still unoiled(so I don't have any problems with painting and if it runs well now, it should only improve after oiling) and that currently it only picks up power from the drivers on the left hand side. The right hand side picks up via the bearings and chassis, so is is as ideal as possible for that side. I plan to add wipers to the left hand leading and trailing wheels to improve pickup.

Cheers,
Rick
Offline kariosls37
#164 Posted : 15 August 2012 08:07:42(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Slowly but surely the final bits have been sorted out on the NS 5301 in between other projects. Following cleaning and a final inspection, this weekend a major milestone has been reached; the loco has now been primed.
For the priming I have used etch primer in a spray can. Because the primer is normally used on cars, the volume of paint coming out the can would drown a model in paint. Instead, I sprayed the primer into the jar of my airbrush. I added some two-way thiner as well to get the right consistency for airbrushing. This method works really well, as I have full control over where the primer flows and the primer is applied in nice thin layers. The only part that wasn't primed with etch primer was the backhead, as this has some styrene on it. Here, Tamiya primer was used instead.
The result:
UserPostedImage
And the top of the loco in detail
UserPostedImage

Although not really visible in the photos, the brass still shows through slightly, meaning that the primer is a nice thin, even layer. It is also nice and smoothThumpUp
Hopefully I will continue with some paint next weekend. In the meantime I have started something else, but more on that later...

Cheers,
Rick
Offline kariosls37
#165 Posted : 19 August 2012 10:12:14(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
With the van done and the loco not needing much work, it was inevitable that I would continue with my regional railway train project.(The loco needs something to pull after all...)
The second class carriages allocated to the area I model were from the series Bl 1021-1070. These were built between 1905 and 1914. They could seat 40 people, with the seats at either end of the carriage facing windows in the end walls for a nice view of either the countryside or more likely, a carriage or van. They are big carriages for being four wheelers, being two metres longer than the van. This was posible due to the low speeds encountered on regional lines.
A drawing of the carriages can be found here:
http://s52.photobucket.com/albums/g15/emmer_van_floortje/NS%20materieelboek%201924/Locaalspoormaterieel/B%20tweede%20klasse%20rijtuigen/?action=view&current=20080111150554910_0007.jpg

They were started a few weeks ago, and this is roughly where they are up to now:
UserPostedImage
The walls were built up flat, the core being 0.5mm styrene with strips on top. The curved tops of the window were punched using a sharpened bit of brass tube. Before assembly, the bottom of the walls was curved inwards and reinforced by laminating styrene on the inside.

The floor is made from 0.8mm styrene, a bit sturdier than the 0.5 I normally use. The seats are stuck to the floor, which is part of the frame. The floor drops out so I can access the interor of the carriage for whatever reason. A shot of the interior so far:
UserPostedImage
And if making one is a big job, I might as well make two more...
UserPostedImage

Thanks for watching,
Rick
Offline FMS
#166 Posted : 19 August 2012 11:52:15(UTC)
FMS


Joined: 01/01/2009(UTC)
Posts: 832
Location: PT
Beautiful job!
Regards
FMS
Offline kariosls37
#167 Posted : 21 August 2012 07:46:52(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks FMS

This weekend I managed to find some time to fire up the compressor to do some painting. As I was working with a number of diffrent paints, I started with the paints that needed the lest agressive thinner. The theory behind it is that doing it this way I minimise the chance of traces of a more aggressive thinner wreaking havoc with other less agressive paints.

This meant Tamiya olive green was first up, thinned with a little 42 Below(It's cheaper than the Tamiya thinner and works just as well). Unfortunately the jar I had was on the old side. Even though I strained the paint through some pantyhose I keep for that purpose, It still had some minute lumps in it. For this reason I only painted the van with it, the loco will get paint from a new jar so I can be 100% sure of the finish.

Next up was black, being my trusty Humbrol 33. No problems there. This was done over both days of the weekend.

With some of the black parts having cured overnight I gave these parts a coat of (Tamiya) clear to protect the paint. Last on the list was painting the buffer beams on the NS 5301. These are seperate parts that can be glued on later to save the hassle of masking them. The paint used here was a specific shade of red manufactured by a model railway firm in Holland, and is the same paint as used on the NS 3931. It is an automotive laquer, which is very nice to work with and dries in minutes. The downside is that the thinner used is very agressive, a gas mask and gloves must be worn during the painting. To finish off the weekend a start was made on some of the hand-painting.

At the end of the weekend I had this;
UserPostedImage
UserPostedImage
Some of the hand-painted bits include the brake valves, regulator and firedoors in the cab, black bits on the buffer beam and some silver bits on the front of the loco.

Cheers,
Rick
Offline kariosls37
#168 Posted : 08 September 2012 09:36:34(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Work has continued on the loco, although it has taken longer than I had wanted. The chassis is now near to being assembled for the last time, although it has suffered a major setback. The method of letting the gear mesh with the side of the worm did work at first, but it hasn't stood the test of time. This means I have to get a new gear wheel, which will suit the worm much better so the net result is an improvement.

The top of the loco has also not been without setbacks, with the masking tape taking some of the paint below with it. However, after removing the paint it was repainted again. To reduce the amount of masking to a minimum I have brush painted all of the black, only masking the line on the water tanks and an edge in the coal bunker.

The net result after some masking:
UserPostedImage

I have been giving the cab a fair bit of attention, and I am now almost finished with the details. I still have to attach some handwheels and the reach rods for the Westinghouse pump and the blower, but it is getting close. A glimpse of the interior:
UserPostedImage

Hopefully I will not encounter too many problems now, the finish line is getting close...

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline river6109
#169 Posted : 08 September 2012 15:16:11(UTC)
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 10,431
Location: On 1965 Märklin Boulevard just around from Roco Square
Rick,

Great details and unbelievable worksmanship

excellent.

regards., John
http://www.youtube.com/river6109
http://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Offline kariosls37
#170 Posted : 10 September 2012 09:16:39(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks John
Offline NZMarklinist
#171 Posted : 10 September 2012 13:51:01(UTC)
NZMarklinist


Joined: 15/03/2011(UTC)
Posts: 1,254
Location: Auckland NZ
Originally Posted by: kariosls37 Go to Quoted Post
Thanks FMS

Even though I strained the paint through some pantyhose I keep for that purpose, It still had some minute lumps in it. Cheers,
Rick


Hi Rick,
You obviously need to nick your panty hose off a better class of bird, those ones from the SLSC probably have sand in theirs Wink LOL
Glen
Auckland NZ

" Every Marklin layout needs a V200, a Railbus and a Banana car", not to mention a few Black and red Steamers, oh and the odd Elok !

CS1 Reloaded, Touch Cab, C Track Modules, K track layout all under construction. Currently Insider
Offline Christoffer
#172 Posted : 20 September 2012 20:09:37(UTC)
Christoffer

Norway
Joined: 23/12/2010(UTC)
Posts: 714
Hey Rick!


Great looking steamer! Cool to see your still in action with the brass. Keep it coming

Christoffer.
Offline kariosls37
#173 Posted : 23 September 2012 09:56:59(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Christoffer. I'm still working on it occasionally. I got a new gear wheel that should do the job this weekend, so with a bit of luck I will be able to show some more progress here somewhere this week.

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline borntman
#174 Posted : 24 September 2012 12:02:52(UTC)
borntman


Joined: 24/01/2010(UTC)
Posts: 101
Location: Gloversville NY
That little green loco is just beautiful
Offline kariosls37
#175 Posted : 25 September 2012 19:55:29(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Borntman, hence the reason I'm building itWink
Offline Yumgui
#176 Posted : 25 September 2012 20:11:33(UTC)
Yumgui

United States
Joined: 20/03/2011(UTC)
Posts: 1,567
Location: Paris, France
Excellent progress Rick !

Very, very enjoyable to see both layout and rolling stock/loco ideas advance simultaneously ... out of the ordinary !

Yum ThumpUp
If your M track is rusted ... DON'T throw it out !
Working on : http://www.arep.fr/en/#/welcome
Inspired by : http://www.nakedmarklin.com/ ... I am not alone in this universe, phew.
Offline kariosls37
#177 Posted : 23 October 2012 09:45:44(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Yum, I tend to keep a number of projects on the go at the same time, this way when I can't be stuffed working one one(which is inevitable) I can continue on another. Right now I have no less than 5 projects on the go at the same time.

And on one project, a good amount of stuff has happened. First of all, I have solved the problems with the gearbox for good I hope. In the Mk II gearbox I have removed the gear that was causing the trouble by a smaller one, allowing it to sit squarely under the worm as it should be. To do this I chopped the old 20 teeth/10 teeth gear up, keeping the 10 teeth part. A brass bush was made up to combine the salvaged 10 teeth gear with a new 17 teeth one.
In this picture the 10 teeth gear(above), the 17 teeth gear(below) and the brass bush(turned up from pieces of brass tube on the cordless drill and soldered together)
UserPostedImage
This was fitted into the gearbox, together with some new bushes for the correct positioning. After some minor adjustments it is running nice and smooth and has been reliableCool

The cosmetics have also been helped along quite a bit. First of all, a suitable tool was found to do the lining; a superfine Stabilp permanent marker. The lines were drawn using some styrene jigs piece by piece. The whole loco got a coat of varnish afterwards to remove the purple sheen of the marker pen.
UserPostedImage
As can be seen, the piping has also been completed. Some pipes were easy to make, but others like the long steam heat pipe on the fireman's side took a lot of effort to figure out what on earth it was for, where it came from and where it went. The scarce photos were used to great effect here, although each engine varies so only the driver's side can be guaranteed to look like it should, as I only have a photo of that side of the real 5301.
UserPostedImage
The brasswork has also been treated with some varnish after polishing. As the loco is meant to look like it is beng used, some red-brown paint was added to the varnish to mimic the tarnishing of the parts. The actual safety valves got a much heavier treatment with brown to represent the dark oxidised bronze colour the real safety's had. The balance arm and spring were painted black to represent the painted steel prototypes.
UserPostedImage
Knuckle couplers were also added, being a standard knuckle coupler where the gead was chopped off and attached to new mounts made mostly from brass wire. I did not have to make many modifications to allow the couplers to be mounted, and they are all out of sight.
UserPostedImage
And finally a look down into the cab and the top of the tanks. Here you see a lot of equipment which is found on practically every loco worldwide, but which are rarely seen on models. On the fireman's side water tank you can find a rake(for raking out coal, ash and clinker in the firebox) and a long shovel for scooping out ash from the firebox. Inside the cab in the top left corner is a broom(very important, seriously) and on the shovelling plate the shovel. On the enginedrivers side tank top sit a block of wood and a jack, both used for rerailing purposes. Just out of sight is another jack on blocks sitting beside the smokebox. Inside the cab all bronze parts have also been given a coat of my brown paint/varnish mix to imitate the tarnished bronze.
The loco has also been coaled up, with a big pile of lead hiding under the coal for extra traction. As I have not put any weight in the front yet the engine is on a bit of a lean, as can be seen in the photos.

The engine is now very close to being finished, the wait is on a decoder to arrive, after which I can do the final assembly.

And now a question for the alert user; Who can tell me what the loco is sitting on?

Thanks for watching,
Rick
thanks 3 users liked this great post by kariosls37
Offline river6109
#178 Posted : 23 October 2012 11:12:06(UTC)
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 10,431
Location: On 1965 Märklin Boulevard just around from Roco Square
Rick a shiny glossy surface, e.g. marble
http://www.youtube.com/river6109
http://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Offline kariosls37
#179 Posted : 23 October 2012 20:34:07(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Yes, it is a shiny surface, but it is not marble...
Offline kariosls37
#180 Posted : 01 November 2012 04:01:34(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Time for some news from the car & wagon workshop.

Besides working on the loco, I have also made some progress on the cars and van.
First of all, the van. It had been painted and varnished a while back, but it needed a few little things sorted out, which are now done. The interior has been painted and the window frames have been redone, which rounds off the painting. The electricals inside have also been finished, with the brightness of the lights now at a realistic level. The pickups are a bit too stiff to my taste, and the van does not run easily, but it is acceptable. I will use phosphor bronze strips next time I think.
Some pictures:
UserPostedImage
UserPostedImage
The only things that are missing are glass and couplers. The former I will do tonight, the latter may be a while as I am having trouble in getting the right ones.

There's also been some progress on the cars. On the outside the wheels have been installed. One side has the wheels sitting in the usual pinpoint bearings, the suspension on the other side can rock, and the mech is pretty much the same as on the van.
UserPostedImage
Gas tanks, truss rods and brake cylinders have been built so far for the underframe. As I found some drawings for various Westinghouse brake parts, the brake cylinder is a faithful reproduction of an 8" set which I suspect these cars had.
UserPostedImage
Again, the car is on the "mystery surface". Any more guesses?....
And last but not least, I have finished painted the interior. Each seat now comprises of 5 parts and a shared back rest, and with 20 seats to a car that makes a total of 336 parts... it does look nice though.
UserPostedImage

Thanks for watching,

Rick
thanks 2 users liked this great post by kariosls37
Offline Christoffer
#181 Posted : 01 November 2012 04:09:59(UTC)
Christoffer

Norway
Joined: 23/12/2010(UTC)
Posts: 714
Originally Posted by: kariosls37 Go to Quoted Post
Time for some news from the car & wagon workshop.

Besides working on the loco, I have also made some progress on the cars and van.
First of all, the van. It had been painted and varnished a while back, but it needed a few little things sorted out, which are now done. The interior has been painted and the window frames have been redone, which rounds off the painting. The electricals inside have also been finished, with the brightness of the lights now at a realistic level. The pickups are a bit too stiff to my taste, and the van does not run easily, but it is acceptable. I will use phosphor bronze strips next time I think.
Some pictures:
UserPostedImage
UserPostedImage
The only things that are missing are glass and couplers. The former I will do tonight, the latter may be a while as I am having trouble in getting the right ones.

There's also been some progress on the cars. On the outside the wheels have been installed. One side has the wheels sitting in the usual pinpoint bearings, the suspension on the other side can rock, and the mech is pretty much the same as on the van.
UserPostedImage
Gas tanks, truss rods and brake cylinders have been built so far for the underframe. As I found some drawings for various Westinghouse brake parts, the brake cylinder is a faithful reproduction of an 8" set which I suspect these cars had.
UserPostedImage
Again, the car is on the "mystery surface". Any more guesses?....
And last but not least, I have finished painted the interior. Each seat now comprises of 5 parts and a shared back rest, and with 20 seats to a car that makes a total of 336 parts... it does look nice though.
UserPostedImage

Thanks for watching,

Rick


Hello Rick

You are really good at this, I love your work man!
Looks really good, i hope you will continue post updates on your work!
ThumpUp ThumpUp ThumpUp

Maybe i should send you a kit and let you build it for me? BigGrin BigGrin RollEyes

Love it! Keep it up!

Christoffer
Offline kariosls37
#182 Posted : 01 November 2012 09:45:10(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thank you very much Christoffer ThumpUp
As long as I build stuff I will show it here, so don't worry, I won't stop any time soonWink
As for assembling a kit, I'm always keen to try something new, so who knows...Wink

And a live workshop update, The glazier has just fitted the last window in the van, another job ticked off the list. ThumpUp

Cheers,
Rick
Offline kariosls37
#183 Posted : 15 March 2013 03:51:12(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
It's about time to show some more progress on the car front.

With decals in, I put aside some time to put all the decals on the van. Not shown on the photo are the couplers, which I have fitted since the photo was taken. It is now sitting in the "to varnish when I get some time" pile. At present this "pile" approximates the shape of a layout under construction, which is where all the unfinished stuff inevitably ends up accumulatingCool Currently the unfininshed stuff greatly outnumbers the finished stuff, but with the arrival of a large pile of couplers from the States and decals from a slightly less exotic destination I hope this statistic may change soonCool

The second class cars are also slowly nearing completion. A lot of work has been done on the underside of the cars, finishing the brake gear, suspension detail and other bits. The headstocks have also recieved their drawgear, with brake hoses and some hand grabs left to do.

With the bottom done, my attention turned to the top. The roof consists of two parts; with the middle section being a simple bit of styrene sheet curved to the radius of the roof and then glued on. The ends are rounded, requiring a little more attention. The basis was formed by a pre-curved bit of styrene fitted to the car. A bit of channel was fitted to it to serve as a conduit for wires in case I want to fit lights later on. You can see this in the second pic

The sub roof was then covered in a generous dollop of filler, which was then filed and sanded to shape. While the dust settled inside I took some photos in the nice summer sun.

Now it's onto end and roof details....

Thanks for watching,

Rick
kariosls37 attached the following image(s):
thanks 1 user liked this great post by kariosls37
Offline Mark5
#184 Posted : 16 March 2013 05:25:29(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Great to see your progress Rick. ThumpUp
I am looking forward to downloading the video version from netflix Wink
Thanks for posting!
- Mark


BTW The mystery surface was a large sheet of resin, right? Blink

Edited by user 16 March 2013 05:33:26(UTC)  | Reason: Not specified

Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

Offline kariosls37
#185 Posted : 18 March 2013 04:12:42(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Mark

The surface does have a resin outside, but it's core is foam, plus a stringer running through the middle of it. A sheet would be a bit of an abstract definition for it.
Any more guesses?

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline kariosls37
#186 Posted : 25 April 2013 11:13:04(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
The next job to tackle is the ends. Although they look pretty straightforward, they are an involved piece of work. Being at the end of the car, they have to stand up to a little abuse. This means styrene can be ruled out, and the whole thing was made from brass and a little spring steel(because I'm all out of 0.35mm brass wireRollEyes )

There are six parts to the assembly, all laid out in groups in the first photo, together with a finished set on the left. The end rail consists of a bit of brass shim(thin brass sheet to the uninitiated) with a shim brass step soldered on it, a handrail made of brass strip and a top rail of the same stuff. Some brass wire finishes off the construction.

The triangular handrail, meant to stop people from stepping off the gangways between the cars is standard to most regional service cars and vans. To aid the bending of this part a simple jig was fashioned to ensure accuracy and to save time in the long run. This jig is the brass bit in the second picture, with a bent up handrail in it.

The resulting pile of bits was soldered up. Stubborn as I am, I didn't go for my low melt solder, copious amounts of flux and a bit of holding allowed me to solder around other soldered bits without too many things getting unstuck in the process.

Once they were all soldered up, it was a simple case of gluing the assembly to the chassis and drilling some holes in the roof to hold the two vertical supports in place.

The last picture shows the assembled rails fitted, ready for further dressing up with gangways and handbrakes.

Thanks for watching,
Rick
kariosls37 attached the following image(s):
thanks 4 users liked this great post by kariosls37
Offline Christoffer
#187 Posted : 26 April 2013 07:58:46(UTC)
Christoffer

Norway
Joined: 23/12/2010(UTC)
Posts: 714
Hi Rick!

Perfect as usual ThumpUp ThumpUp Thanks for sharing ThumpUp

Have a great weekend!
Offline kariosls37
#188 Posted : 12 May 2013 09:23:36(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks ChristofferThumpUp

Meanwhile in the workshops, work has been progressing slowly. A major mental stumbling block which had me stumped for a long while was the gates. In real life, the side gates were nothing more than three hinged bars which rotate and fold upwards to allow passengers to pass through when needed. Not too bad to model if I didn't want to pull the top off. In order to do so, the gates would have to move out of the way to let the gates move out of the way to clear some handrails. A lot of condemmned ideas later, I settled on having the gates rotate out of the way. With the hardest bit out of the way, using some more jigs more 0.35mm spring steel(I still haven't got around to topping up my brass wire supplies) was bent up and soldered. While some gates were made in the open position, most are in the closed position to reflect on their state when the train is in motion.

From the gates we move up to the roof, where lamp irons were made up and fitted. Something simple for a change.

While that was going on, I was busy making resin castings for the roof fittings. I had made rubber moulds of the gas vents and air (torpedo) vents a while back. The gas vents being not much more than a truncated cone, are a simple matter of cleaning them up and plonking them on the roof. The torpedo's are not as easy, and are cast in two parts, being filed to size. even with a jig to hold them, they still are tricky to get right. Two halves make one vent, with a bit of brass wire to mount them on the roof for good measure. There's 8 gas vents and 10 torpedo's per car, and two cars have been done so far. The vents are the last thing on the list, then there is a couple of small bits to tidy up before the car can be sent off to the paint shopCool

This morning I took part of the layout outside and took a couple of photos to illustrate the progress so far

Thanks for watching,
Rick
kariosls37 attached the following image(s):
thanks 4 users liked this great post by kariosls37
Offline kariosls37
#189 Posted : 20 May 2013 11:41:12(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
This week saw the last of the gas vents and torpedos cast and fitted. After some minor work(filing W iron bottoms square, gluing spreader bars into the right position) the gasfitter was called to install the plumbing for the gas lights(they don't work alas, that's something I'm still working on...) The plumbing was just made up of a main "pipe" of solid core copper electrical wire, with a strand of stranded electrical wire forming the little pipes to the individual lights.

With the last torpedos being put together, I had the presence of mind to take a picture of the different stages from casting to finishing. Along the way I use a little jig to hold the halves. That's the bottle cap with the hole in it in the bottom right corner of the pic. Along the top are some gas vents as well.

Of course with them all done, I put them together for the (hopefully) last picture before they get a coat of paintCool

The cars are now prepped and ready for the paint shops, if I get some time between playing big trains this weekend I may get a coat of paint on.

In the meantime, I have started another exiting project that has been on the list for a while. See if anyone can guess what it is. Hint: Blauwe Brabander

Cheers,
Rick
kariosls37 attached the following image(s):
thanks 3 users liked this great post by kariosls37
Offline kariosls37
#190 Posted : 22 May 2013 00:35:50(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
And now for something completely different...
(with apologies to Monty Python)

In 1908 a brand new class of 4-6-0 express engine appeared on Dutch rails which was a size bigger than any passenger engine up to that time. The engines were ordered from the usual firm of Beyer, Peacock & Co, Manchester to be delivered to the Noord Brabant Duitsche Spoorweg Maatschappij(North Brabant-German Railway Co, NBDS) in a striking blue livery lined out in red and white. They quickly aqquired the nickname Blauwe Brabander(Blue Brabander) as a result of their colour and owner. These engines were good performers on the heavy boat trains running from the channel ports to Germany, and after trials by other companies these started building their own designs of 4-6-0's. The initial class of 6, NBDS 30-36 was expanded in just before WW1 by ordering two more engines from Hohenzollern in Germany. The first was delivered in 1914, becoming NBDS 36. The Great War intervened, and the other loco could not be delivered until 1920. In the meantime the SS had taken over the NBDS, so the last loco never had an NBDS identity.

With the formation of the NS in 1921 the locos became the NS 3501-3508, and in the mid thirties were stationed at depot Zwolle, which saw them venture out to the North of Holland, including the general area of my interest. However, being a relatively heavy and big loco, it would never have ventured onto branch lines like Nieuweveenschekanaal. However, I like the engine and as a first scratchbuilt loco it has plenty of space to get rid of the neccesary mechanisms and electronics. Plus, the inhabitants of Nieuweveenschekanaal probably won't care since the even heavier and powerful NS 3931 is already a frequent visitor.

To meet the necessary weight restrictions imposed by the NBDS track standard of 1908, the engines were lightly built. By the late thirties this caught up with the locos, with cracks in the frames reaching a size that resulted in the scrapping of all but three locos. The 3501,3505 and 3508 soldiered on at half speed(50km/h) until just after the war.

My loco will become the 3506, because as the last of the first batch, it has the nice Beyer, Peacock plates, I have photos of it and it was retrofitted with a longer bogie tender.
After I'm done, I hope to have it looking something like this:
NS 3506, 1936

That's the dry history out of the way, now for the build.

We start with some 0.3mm brass sheet, marked out and with holes for the bearings drilled before cutting. Putting some screws into the holes to hold all four sides together, the sides were filed to shape.
Following on from this, some brass strip was drilled and tapped to accept M1.4 screws and soldered to the frames(I could have just used the M1.4 nuts I had, but that would have been too easy and too clever rolleyes] )The screws will allow the sideframes to rotate, letting the bogie compensate for lumps and bumps in the track An added bonus is that the bogie will hopefully be less prone to derailments.

The bogie spacers were folded up from pre-drilled 0.75mm brass sheet. I always have trouble figuring out cut lengths for thick bits of bent sheets, so it took me two goes before I got it right.

I had just enough bearings for one bogie, but with wheels in both bogies the first tangible piece of the new loc is a factWoot

Thanks for watching,
Rick
kariosls37 attached the following image(s):
thanks 3 users liked this great post by kariosls37
Offline kariosls37
#191 Posted : 19 July 2013 11:28:33(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
And now I dart back to my cars. In the past few weeks thay have been painted green, repainted, lined, decalled and varnished. Because the beading was picked out in black, it took a while to get all the paintwork done. It didn't help that the green coat had some thin spots that needed remedial work.RollEyes With the paint and varnish on, two cars were glazed, the third one waiting for me to get some more glazing material.

The finish line is getting close...

Cheers,
Rick
kariosls37 attached the following image(s):
thanks 4 users liked this great post by kariosls37
Offline kariosls37
#192 Posted : 27 July 2013 10:52:56(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
This week I got some glass to do the windows of the last car. That leaves the cars finished and ready for serviceCool

A light weathering will follow in time, but for now here are some photos of the cars and the complete rake as it is now.

Thanks for watching,
Rick
kariosls37 attached the following image(s):
thanks 3 users liked this great post by kariosls37
Offline Yumgui
#193 Posted : 27 July 2013 20:44:19(UTC)
Yumgui

United States
Joined: 20/03/2011(UTC)
Posts: 1,567
Location: Paris, France
Rick,

Can't add much to what has already been written ... aside maybe from; not only is your craftsmanship a real pleasure to see, but the creation of your own very personal scaled railroad world is unmatched ... ! Can now see the result of months (or years) of work in your last post ... ^^

We (I) mere Märklin collectors can only go on and blather about factory made models in series, hoping that not too many people have the same ones in order to be "original" or "special" (exaggerated OK, but true nonetheless) ...
Rather than looking at other brands to complete consists which Märklin never made and will never make, you're slowly but surely convincing me, time willing, to make my own !

Your thread is a real refresher here !

So, thanks again for it,

Y ThumpUp
If your M track is rusted ... DON'T throw it out !
Working on : http://www.arep.fr/en/#/welcome
Inspired by : http://www.nakedmarklin.com/ ... I am not alone in this universe, phew.
Offline kariosls37
#194 Posted : 29 July 2013 08:28:43(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
Thanks Yum, I'm glad you are enjoying it.

For me it's a means to an end, a fun one at that. There's not much chance some mainstream manufacturer will ever look at many models that I have built because they just are too obscure. I just build what I want, and I want what I build.

If you want to give it a go, I would reccomend getting a kitset like the one I started out with to get to know how to build a wagon, and go from there. If you are used to working with your hands it won't be too difficult. This thread is pretty much a running commentary of my first steps and stumbles into the world of building rolling stock, and this is me, still stepping and stumbling frequently three years later. Hopefully one day it may be of use to another beginner.

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Offline Mark5
#195 Posted : 30 July 2013 18:41:17(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 740
Location: Montreal
Woot Woot Woot ThumpUp Love Love Love

Fantastisch! Heel mooi! (dutch)

Fantastic! Very Beautiful!

Would love to see a little video of this beauty in action.

So.... what will the next adventure in brass be??

- Mark
Interested in history of DB, DR and FS from about 1955 to 1965
Fan of signals and catenary; stations and yards. Is there anything else?

thanks 1 user liked this great post by Mark5
Offline Yumgui
#196 Posted : 30 July 2013 19:21:40(UTC)
Yumgui

United States
Joined: 20/03/2011(UTC)
Posts: 1,567
Location: Paris, France
Originally Posted by: kariosls37 Go to Quoted Post
Thanks Yum, I'm glad you are enjoying it.

For me it's a means to an end, a fun one at that. There's not much chance some mainstream manufacturer will ever look at many models that I have built because they just are too obscure. I just build what I want, and I want what I build.

If you want to give it a go, I would recommend getting a kit-set like the one I started out with to get to know how to build a wagon, and go from there. If you are used to working with your hands it won't be too difficult. This thread is pretty much a running commentary of my first steps and stumbles into the world of building rolling stock, and this is me, still stepping and stumbling frequently three years later. Hopefully one day it may be of use to another beginner.

Cheers,
Rick

Great advice Rick !

Have been (slowly) getting ready for new things, like brass soldering.
I can handle just about any building job, been doing it since age 6; and it's still fun too ... it's always a whole new world in this domain !

And this thread has been a major motivation to learn new stuff ...

Y ^^ ThumpUp

PS: Someday, I'll have something to show for it ... as you do now ... ^^

Edited by user 30 July 2013 19:39:21(UTC)  | Reason: bla, bla, bla ...

If your M track is rusted ... DON'T throw it out !
Working on : http://www.arep.fr/en/#/welcome
Inspired by : http://www.nakedmarklin.com/ ... I am not alone in this universe, phew.
thanks 2 users liked this great post by Yumgui
Offline kariosls37
#197 Posted : 15 February 2014 08:02:00(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
After a long silence, once again the workbench is showing some signs of life. After a mad rush of making Nieuweveenschekanaal presentable and displaying it, the layout was left for what it was and I found some unfinished projects. One which had been annoying me for quite some time was a half built goods van. I recieved this from Werps Modelbouw together with the loco, NS 5301, to make up for the long wait. What was in the box was some nice nickel silver etchings and a couple of castings. While most of the stuff was there, not all of it was, such as the channels for the sides. Still a pretty nice surprise though. The etch was for a CHD, a very close relative to the cattle van on the previous page.

Even though there were no instructons to go with it, the wagon was started and was easy enough to build. Wheels and bearings are just my usual type fitted to most of my rolling stock, so their absence was no problem either. However, just before completion I hit a snag. The kit provides beautiful gusset plates to fit in the corners of the body. (For the non-engineers amongst us, gusset plates are triangular pieces of steel bolted or riveted to corners of framing to give it more strength. ) With no instructions an no answers to my emails as to which that stalled the build.

After the layout had been to the show and back, I was after something different, and the CHD was within reach. By now I wasn't too fussed as to being 100% with the gusset plates, so I just soldered them on as per the basic sketch I had, with the different rivet and bolt patterns on them being placed where they seemed most logical. The rest was then finished off, with some styrene headstocks, channels and details being made to suit. Some shunters steps from the leftover box and couplers finished the wagon off and now it is finally ready for priming and paintingCool
UserPostedImage
UserPostedImage

All in all, despite the problems in finding out what goes where, it is a very nice kit to look at, absolutely loaded with nice details.

Happy modelling

Rick
thanks 3 users liked this great post by kariosls37
Offline kariosls37
#198 Posted : 17 February 2014 22:18:38(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
After the wagon interlude, it was time to pick up a more substantial unfinished project, the NS 3506

A long while back I had already done the bogie sideframes. The bogies are packed with detail, which had to be made. To start with, a bit of thin styrene was embossed with rivets using a scriber, and then glued to the brass sideframes. Using a variety of styrene shapes and strips the axlebox and springing details were built up, looking something like this:
UserPostedImage
As you can see, the floor was also built up to get an idea of bogie spacing.

Then the project was put on the shelf so I could make the layout presentable. Fast forward to the present, and now a start was made to the top. The shell of the tender is a box. Made out of thick 0.75mm styrene, this provides a solid base. The tender is saturated with rivets, so there will be another layer of thin styrene to go over the top of this.
UserPostedImage

Once the basic box was done, the first details were attached, such as the rear headstock with it's rivet detail and the edging on the bottom of the tender. Even though the whole thing does cover part of the bogies, the bogies still have enough swing to get the tender through curves.
UserPostedImage

Cheers,
Rick
thanks 3 users liked this great post by kariosls37
Offline kariosls37
#199 Posted : 17 March 2014 22:34:34(UTC)
kariosls37

New Zealand
Joined: 02/01/2009(UTC)
Posts: 1,066
Location: Auckland, New Zealand
All this time I have been quietly building.

The 3500 class has nice curved tender tops, something typically British. It is however a right pain to model. In order for the curves to stay nice, some thin brass was bent and filed to the right shape first.
UserPostedImage

What followed then was soldering up the front and rear walls to the brass bits, and gluing it to the rest of the tender.

The sides are infested with rivets, which had to be punced one by one using a scriber. To keep (in)santity levels to a reasonable level, a movie was put on the laptop, brain was left out of gear and with a rule and scriber the rivets were punched into thin styrene. Once done, the brain was re-engaged and the sides were stuck onto the tender. Some round beading was also added with this result:
UserPostedImage

Then followed a whole lot of to-and-fro-ing between the model and photos. About halfway through I noticed something didn't look right on the tender. After checking more photos it turns out that the sides of the coal bunker are shorter on all but one of the tenders, and it so turns out the drawing I used was for the tender with long sidesCursing Cue some chopping and changing, and now the sides are the correct length. After that the detailing was finished. The photo below shows the front of the tender, complete with a shovel on the firing plate and a rake and pricker on the side of the tender.
UserPostedImage

The other side contains more brackets and steps. The buffers are pretty much ready, they just need a little go in the lathe when I get access to one.
UserPostedImage

That leaves the tender pretty much done. Wheels have also arrived for the loco for the UK. However, before the building of the loco starts I have a Fairlie interesing project on the go...

Cheers,
Rick
thanks 1 user liked this great post by kariosls37
Users browsing this topic
Guest
2 Pages<12
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

Powered by YAF | YAF © 2003-2014, Yet Another Forum.NET
This page was generated in 3.703 seconds.
