Offline marklin61
#1 Posted : 01 June 2016 12:30:54(UTC)
marklin61


Joined: 05/01/2007(UTC)
Posts: 101
Location: Tuki Tuki Valley
I am having a great deal of difficulty getting the 60880 memory module working on bus 3 contacted to the L88.
I have successfully loaded the L88 patch (thanks Adrian for your pervious post on this.!) The CS2 will talk to the L88 and memory modules attached to it, no problem on the CS 2 side..!! but I am unable to get Windigipet to acknowledge any memory modules (older 60880) attached to bus 3.I have configured modules 1-2 (for the L88) contacts 1-16 on CS slave (in system settings) and these are all OK and work fine. But the connected 60880 to bus 3 configured with contacts 17-32 which just don't respond. Does any windigitpet user here know what I maybe doing wrong?
Steve...............

Life with Pinot Noir, Chocolate and Marklin trains..........
Offline lglarsson
#2 Posted : 01 June 2016 13:43:02(UTC)
lglarsson

Sweden
Joined: 04/03/2009(UTC)
Posts: 43
Location: Enskede,
Originally Posted by: marklin61 Go to Quoted Post
I am having a great deal of difficulty getting the 60880 memory module working on bus 3 contacted to the L88.
I have successfully loaded the L88 patch (thanks Adrian for your pervious post on this.!) The CS2 will talk to the L88 and memory modules attached to it, no problem on the CS 2 side..!! but I am unable to get Windigipet to acknowledge any memory modules (older 60880) attached to bus 3.I have configured modules 1-2 (for the L88) contacts 1-16 on CS slave (in system settings) and these are all OK and work fine. But the connected 60880 to bus 3 configured with contacts 17-32 which just don't respond. Does any windigitpet user here know what I maybe doing wrong?



Hi
You should in layout on the CS2 enter contact 32 since you have 4 module installed. I experieced that earlier.
If you don't have any layout there you only have to edit a short track and put in contact 32 on it.
regards
LG
Märklin collector/K-track, permanent layout since 1985/60214 CS2, CS3+, 60174 Boosters/WinDigipet, WinTrack, Collection/
Offline siroljuk
#3 Posted : 01 June 2016 17:12:46(UTC)
siroljuk

Finland
Joined: 29/10/2010(UTC)
Posts: 377
i Steve,
Read this story, perhaps you find help from it:

http://www.windigipet.de.../index.php?topic=74924.0
Happy Training
Regards

Jukka
Offline ilekrib
#4 Posted : 01 June 2016 19:45:25(UTC)
ilekrib

Norway
Joined: 04/02/2015(UTC)
Posts: 3
Location: Hordaland, Bergen
Hi
60883, bus 3= 3001-3496. In windigipet this equals contackts 1009-1504
from module 376 to 437 WDP Start modul 127

Regards
Vidar

Edited by user 02 June 2016 23:52:15(UTC)  | Reason: Not specified

Offline et1
#5 Posted : 04 June 2016 21:43:00(UTC)
et1

United States
Joined: 04/07/2009(UTC)
Posts: 36
Location: Hawaii
Originally Posted by: marklin61 Go to Quoted Post
I am having a great deal of difficulty getting the 60880 memory module working on bus 3 contacted to the L88.
I have successfully loaded the L88 patch (thanks Adrian for your pervious post on this.!) The CS2 will talk to the L88 and memory modules attached to it, no problem on the CS 2 side..!! but I am unable to get Windigipet to acknowledge any memory modules (older 60880) attached to bus 3.I have configured modules 1-2 (for the L88) contacts 1-16 on CS slave (in system settings) and these are all OK and work fine. But the connected 60880 to bus 3 configured with contacts 17-32 which just don't respond. Does any windigitpet user here know what I maybe doing wrong?


Hello Steve,

I have connected my 13 6088(0)'s to Bus 3 on the L88. My device number was 230. Voltage setting is 5 volts. To keep the contacts numbered from 1 to 208 I used start module 1 in WDP.

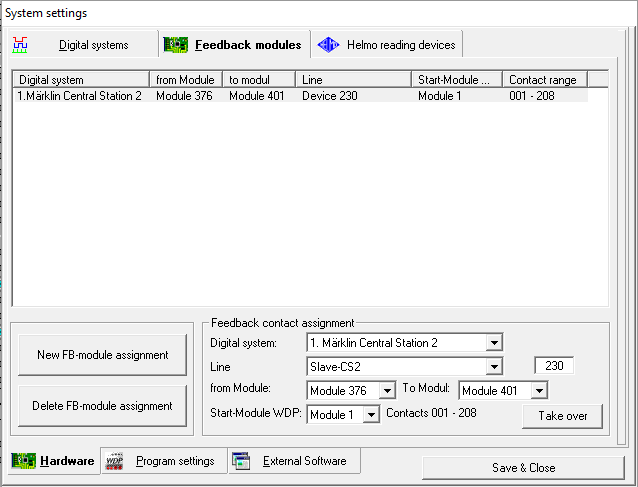

See attached configuration screen.

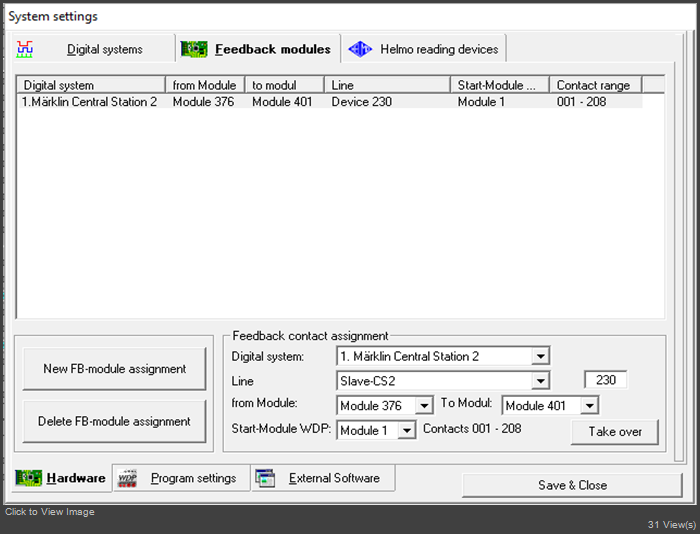

Feedback Modules connected to L88.png

Aloha,

Elliott
Elliott
CS2 4.1.2 (3), CS 2.04, 6021, 3x 60174 Boosters, L88, 2x 60881, 13x 6088(0) ,Windigipet 2015 Premium, Marklin K-track layout (in progress)
Offline Joan Ferrer
#6 Posted : 05 June 2016 10:57:00(UTC)
Joan Ferrer

Spain
Joined: 07/09/2015(UTC)
Posts: 8
Location: Catalonia, Pineda de Mar
On the website of Marklin Spain there is a manual called as the CS2 with Windipet link in great detail explains the correlation of addresses feedback modules between CS2 and Windigipet.
The manual is in Spanish, with a translator I think you can understand.
The address to get off this manual is as follows "http://www.marklin-spain.com/archivos/imgs/pdf/Como-enlazar-la-Central-Statio-2-con-el-programa-WinDigipet.pdf.

I hope you serve
Greetings from Joan Ferer
thanks 1 user liked this useful post by Joan Ferrer
Offline marklin61
#7 Posted : 06 June 2016 07:14:20(UTC)
marklin61


Joined: 05/01/2007(UTC)
Posts: 101
Location: Tuki Tuki Valley
Thank you Elliott,

Problem now solved....it was my feedback module not starting at 376 with Windigipet...Now all contacts respond accordingly.

Thanks for the tip..

Steve
Steve...............

Life with Pinot Noir, Chocolate and Marklin trains..........
thanks 1 user liked this useful post by marklin61
