Hi guys.

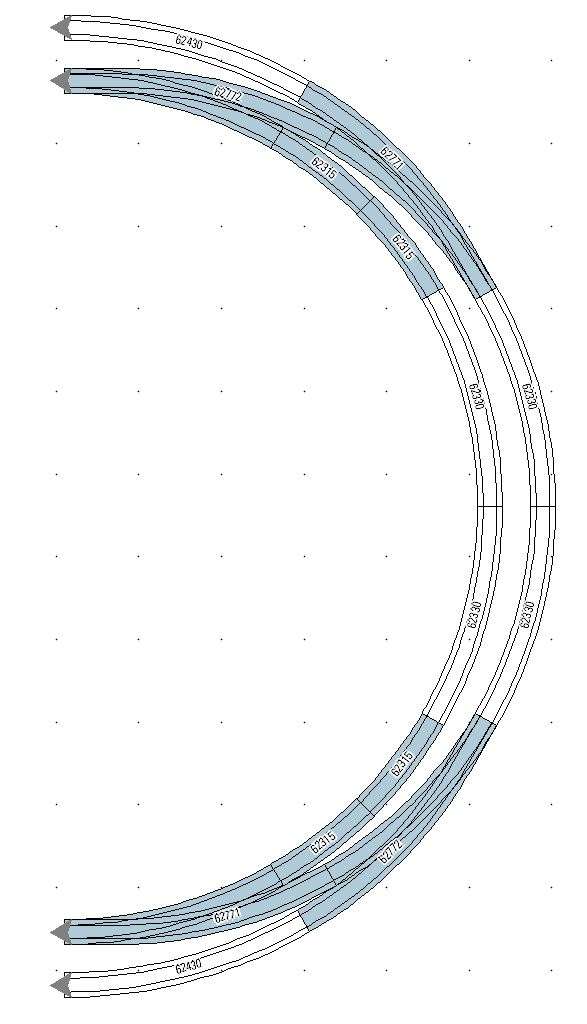

If you would like to play around with the new C track in SCARM, you can add the track pieces yourself.

I opened the Marklin-HO-C.lib file (located in the SCARM program folder under "Lib") and added the following lines in their repective track sections:

TCurvedRail|24315|24315|515|15|0

TCurvedArrowRail2|24771|24771|2|515|30|515|30|64.3|1
TCurvedArrowRail2|24772|24772|2|515|30|515|30|64.3|0

The Trix version (in Trix-HO-C.lib):

TCurvedRail|62315|62315|515|15|0

TCurvedArrowRail2|62771|62771|2|515|30|515|30|64.3|1
TCurvedArrowRail2|62772|62772|2|515|30|515|30|64.3|0

This seems to do the trick, but perhaps someone will confirm if they agree on the proposed use of the track pieces. Looks right to me.

Søren from Denmark
Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
thanks 2 users liked this useful post by sjlauritsen
Offline clapcott
#2 Posted : 26 August 2015 14:02:58(UTC)
clapcott

New Zealand
Joined: 12/12/2005(UTC)
Posts: 2,433
Location: Wellington, New_Zealand
Originally Posted by: sjlauritsen Go to Quoted Post
.
This seems to do the trick, but perhaps someone will confirm if they agree on the proposed use of the track pieces. Looks right to me.


Rail geometry yes, but roadbed I do not think this will work, If you try to connect the long leg (of say a left curve) directly into the short leg(of a right curve) it is an untidy match.

Add to this the fact that the description specifically says ".. Two (2) each 23315 track are required on the inner and outer curve of the turnout..."

I hope I am wrong as it seems like a waste of make-up sections, however i think this is more likely
UserPostedImage
Peter
Offline sjlauritsen
#3 Posted : 26 August 2015 15:57:12(UTC)
sjlauritsen

Denmark
Joined: 18/08/2007(UTC)
Posts: 1,081
Location: Denmark
Originally Posted by: clapcott Go to Quoted Post
I hope I am wrong as it seems like a waste of make-up sections, however i think this is more likely

I hope you're wrong. Smile

In my example I assume that they made it possible to remove some of the road bed on the turnout itself. That would make my example work, and it would match the description in the product catalogue that you need only two of the 24315. It was the only thing I could think of, when you take the number of 24315s needed into account.

Unless, of course, it is two per turnout.
Søren from Denmark
Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
Offline kiwiAlan
#4 Posted : 26 August 2015 18:26:17(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 8,082
Location: ENGLAND, Didcot
Originally Posted by: sjlauritsen Go to Quoted Post
Originally Posted by: clapcott Go to Quoted Post
I hope I am wrong as it seems like a waste of make-up sections, however i think this is more likely

I hope you're wrong. Smile

In my example I assume that they made it possible to remove some of the road bed on the turnout itself. That would make my example work, and it would match the description in the product catalogue that you need only two of the 24315. It was the only thing I could think of, when you take the number of 24315s needed into account.

Unless, of course, it is two per turnout.


The picture of the point (but not the picture of the curved track) and the text say that both have removable track bed (just like the 24711 and 24712) and that a filler piece is provided. So I suspect that a curve is needed between the points that do the crossover between tracks. I guess there will be some pieces on display showing how it fits together, at Treff ...
Offline Goofy
#5 Posted : 26 August 2015 18:30:26(UTC)
Goofy


Joined: 12/08/2006(UTC)
Posts: 8,993
Originally Posted by: sjlauritsen Go to Quoted Post
Originally Posted by: clapcott Go to Quoted Post
I hope I am wrong as it seems like a waste of make-up sections, however i think this is more likely

I hope you're wrong. Smile

In my example I assume that they made it possible to remove some of the road bed on the turnout itself. That would make my example work, and it would match the description in the product catalogue that you need only two of the 24315. It was the only thing I could think of, when you take the number of 24315s needed into account.

Unless, of course, it is two per turnout.


Sören has right.
It´s just like large straight turnouts which have remove some of the road bed.

H0
DCC = Digital Command Control
