Offline Moritz-BR365
#1 Posted : 08 June 2015 13:08:29(UTC)
Moritz-BR365

Germany
Joined: 02/04/2013(UTC)
Posts: 682
I installed interior lights into the steering cab and the 1st class waggon of my ICE 2 (Märklin 29791). Here are some pictures and explanations of this little modification:

In the steering cab, there is already a small circuit board which has solder pads for a capacitor. Therefore, I soldered a 470µF buffer electrolytical capacitor there. This capacitor buffers the head light of the steering cab:

UserPostedImage

UserPostedImage

UserPostedImage

Then, for the interior light LEDs, I used two 4.7kOhm resistors in parallel (total resitance 2.35kOhm)

UserPostedImage

At the end of the waggon, + and - are soldered to the coupler to provide the voltage to the 1st class waggon:

UserPostedImage

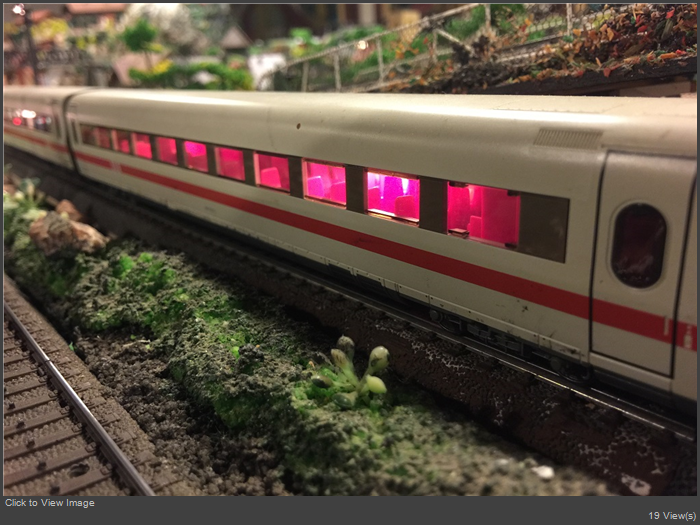

And this is, how it looks:

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

The interior light LEDs are buffered only by this single capacitor in the steering cab.

The total current consumption is below 50mA for both waggons together!
thanks 7 users liked this useful post by Moritz-BR365
Offline Joseph Meiring
#2 Posted : 08 June 2015 14:06:43(UTC)
Joseph Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 1,157
Location: Western Cape Cape Town
Wow! What a great looking result...a really lovely effect on this train....well done Moritz!
Joe
thanks 1 user liked this useful post by Joseph Meiring
Offline waorb
#3 Posted : 11 June 2015 13:42:30(UTC)
waorb

Brazil
Joined: 31/05/2011(UTC)
Posts: 868
Location: Brazil
Hello Moritz!

Nice job with the capacitor and the 'current conduction couplers'. Woot

1 or 2 years ago I also inserted lights on my ICE2 (even Märklin saying that´s not possible)... I took a diferent way as you, inserting one pick-up shoe on each wagon, adapting the underframe to fit it...

Cheers,

Walter

thanks 1 user liked this useful post by waorb
Offline Bigdaddynz
#4 Posted : 11 June 2015 14:03:34(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 18,661
Location: New Zealand
Originally Posted by: waorb Go to Quoted Post
I took a diferent way as you, inserting one pick-up shoe on each wagon, adapting the underframe to fit it...


You can't buy the copper contacts for the couplers anymore but you still can buy a complete coupler for the ICE2 coaches complete with copper contacts, with with you can replace the standard ICE2 couplers.

This is what I have done for my ICE2.
Offline Bigdaddynz
#5 Posted : 11 June 2015 14:13:31(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 18,661
Location: New Zealand
